Autel MaxiSYS ADAS IA800 Full Kit + ACC + MS909

Product detailed description

The Autel IA800 mobile calibration frame is a compact ADAS option for easy transport. Thanks to its quick assembly and disassembly, the IA800 offers versatile use. You can easily transport the device between different service locations. Autel MaxiSYS ADAS is the ideal solution for calibrating driver assistance systems after replacing the windshield or performing other service tasks that affect the sensors located in the vehicle. The main function of the IA800 is to calibrate the LDW (lane departure warning) system.

The IA800 model is equipped with cameras for maximum ease of frame alignment. This allows you to set up the frame in a matter of minutes.We will be happy to prepare an individual offer for you, please do not hesitate to contact us contact us.

Hardware

• precise workmanship
• precise adjustment using cameras
• mobile use thanks to easy assembly and disassembly
• available modular solution

Software

• easy to use thanks to intelligent height adjustment
• regular updates of data necessary for accurate calibration
• Correct calibration procedure
• Intuitive operation with numerous tutorials and step-by-step instructions
• Pre-Scan & Post-Scan reports
• expandable with AVM (around view monitoring) and RCW (rear collision warning) calibration

The Autel MaxiSYS MS909 diagnostic device is included in the delivery, so this is a complete package with no additional purchases required.

Technical Parameters

• Calibration frame dimensions: 2510 x 714 x 1480-2105 mm
• Calibration frame weight – 74.5 kg / 152 kg (complete)
• Nominal power – 24 V, 3A
• Nominal laser power – 3 V, 25 mA
• Laser battery type – AA 2×1.5 V
• Laser class – Class 2
• Certification – CE, FCC, RoHS

Package Content

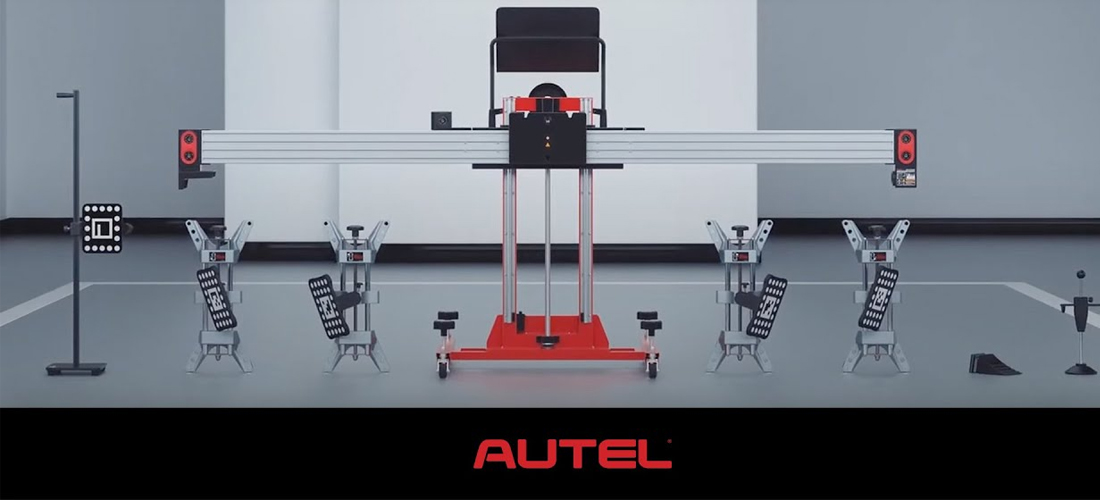

• Autel ADAS IA800 portable calibration frame
• Autel MaxiSYS MS909 diagnostic device
• SW activation
• Foldable aluminum calibration frame with travel case
• Camera set for easy setup
• 4x wheel clamps
• ACC calibration mirror
• LDW target for Mercedes vehicles
• LDW target for VW cars
• LDW target for Nissan cars
• LDW target for Honda cars
• LDW target for Nissan / Infiniti cars
• LDW target for Hyundai/Kia/Jeep/Fiat cars
• LDW target for Honda II vehicles
• LDW target for Hyundai/Kia vehicles
• LDW target for Toyota/Lexus vehicles
• LDW target for Toyota/Lexus vehicles
• ACC calibration kit
