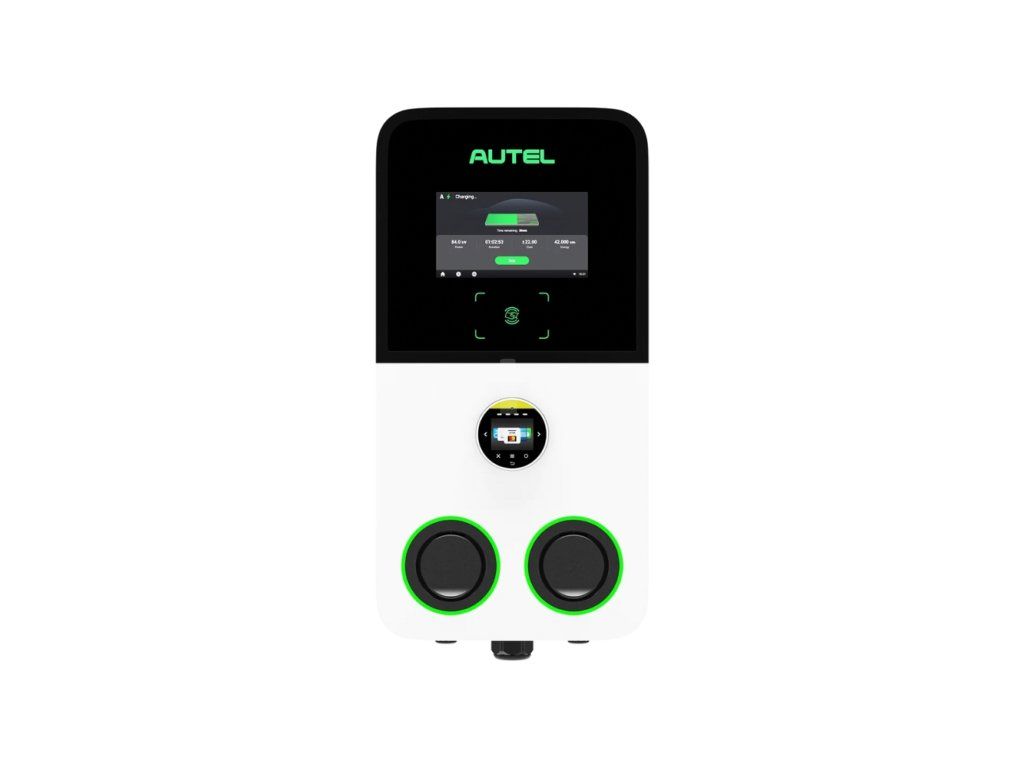

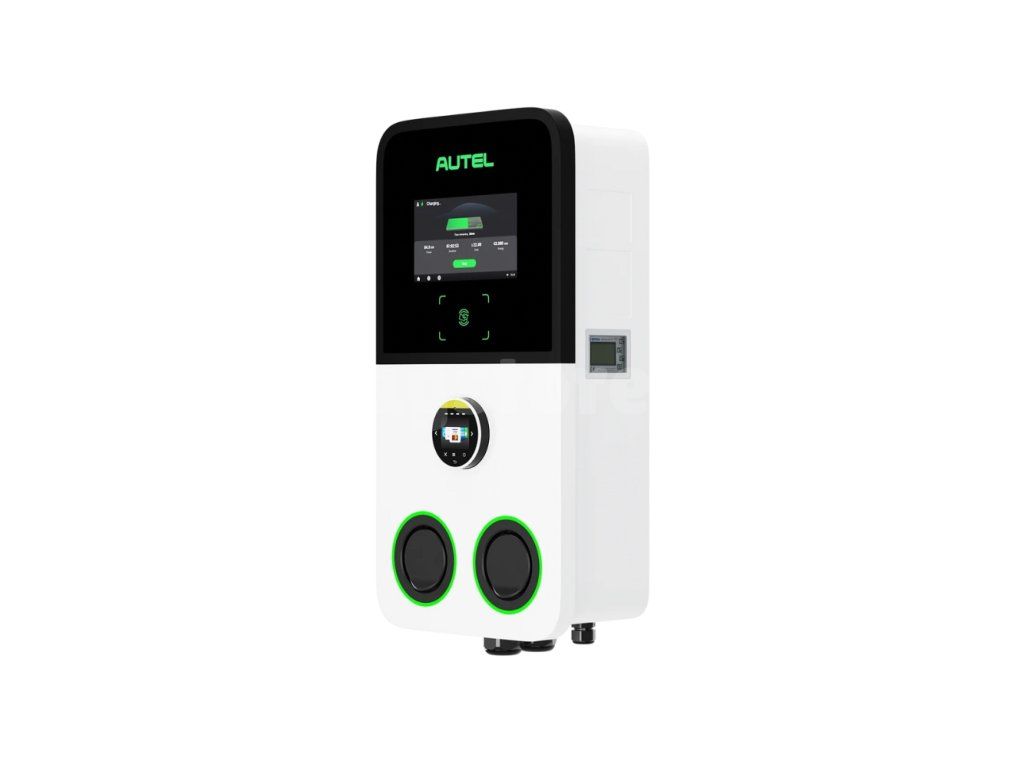

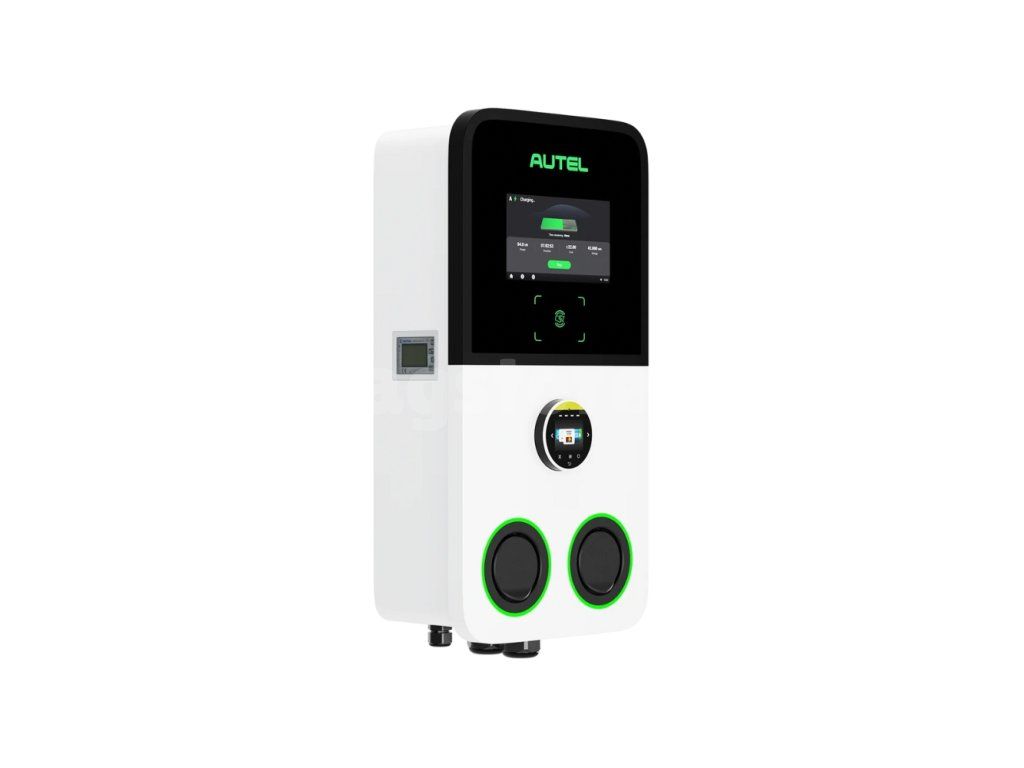

Autel MaxiCharger AC Ultra

Product detailed description

Autel MaxiCharger AC Ultra 2×22 kW is a 2-port AC charging station for 2 vehicles. With an output of 19.2 kW per port, it can generate a range of approximately 120 km making it one of the fastest two-port AC charging stations in the world. The charging station also features an advanced cable management system (CMS) that keeps cables constantly above ground, protects cables from damage and offers ultra-smooth movement from the charger to the charging ports. The charging station also features an 8" LCD display that can be used for both tracking charging data, switching languages and as an advertising surface.&nbspIt is designed for businesses, fleets, parking lot owners and homeowners. The station also offers customization options such as a credit card reader, energy meters, a pedestal and customizingthe charger to your logo.

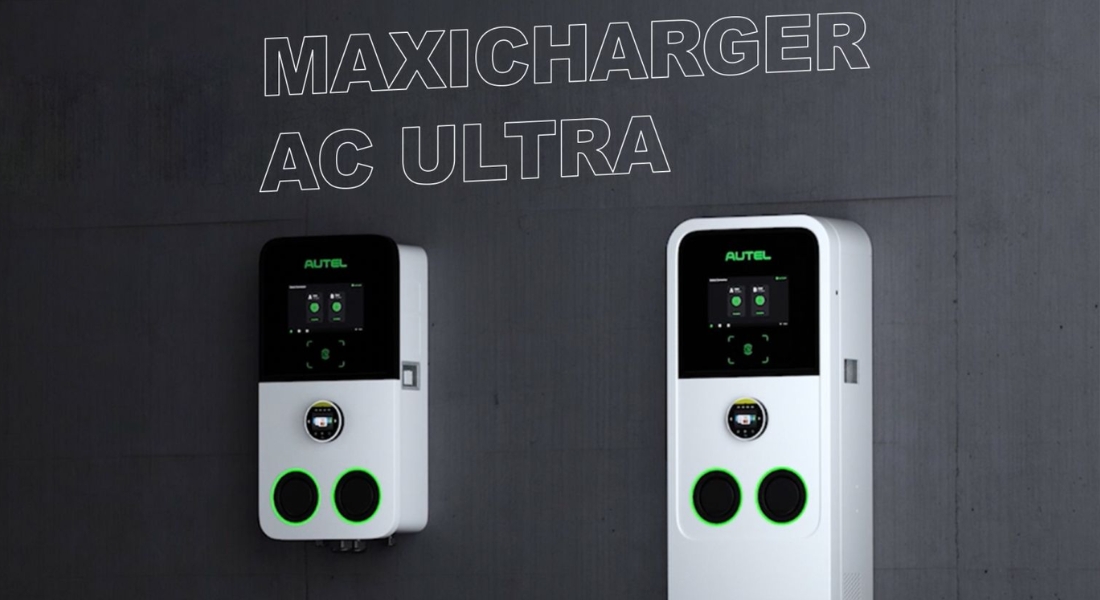

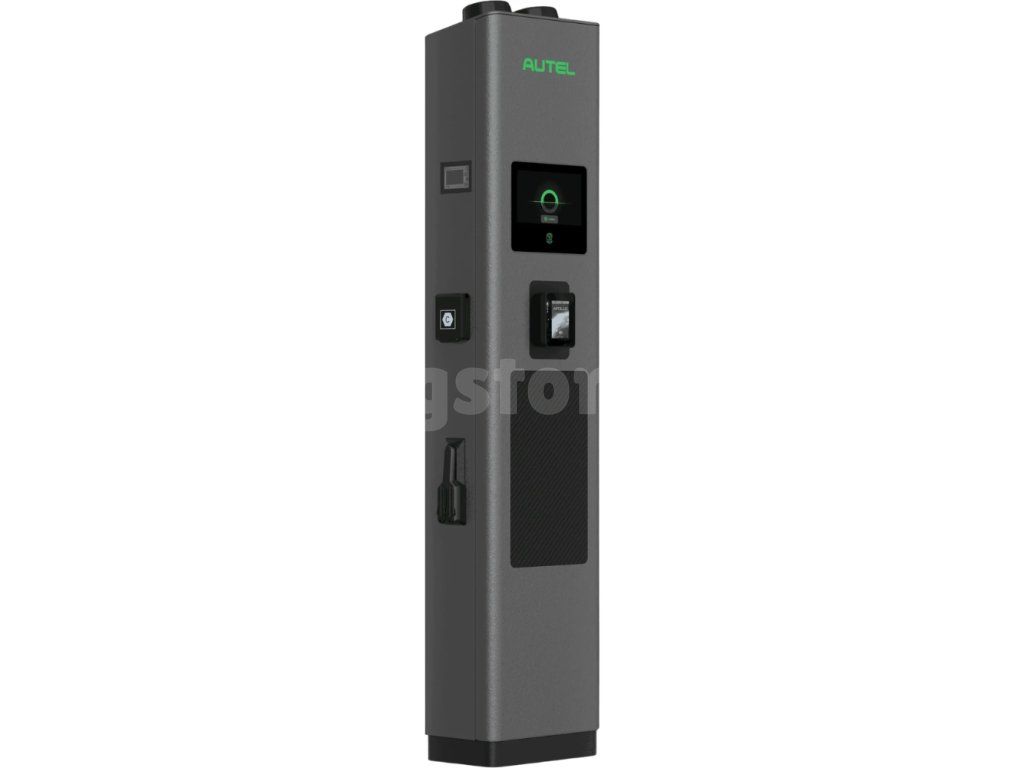

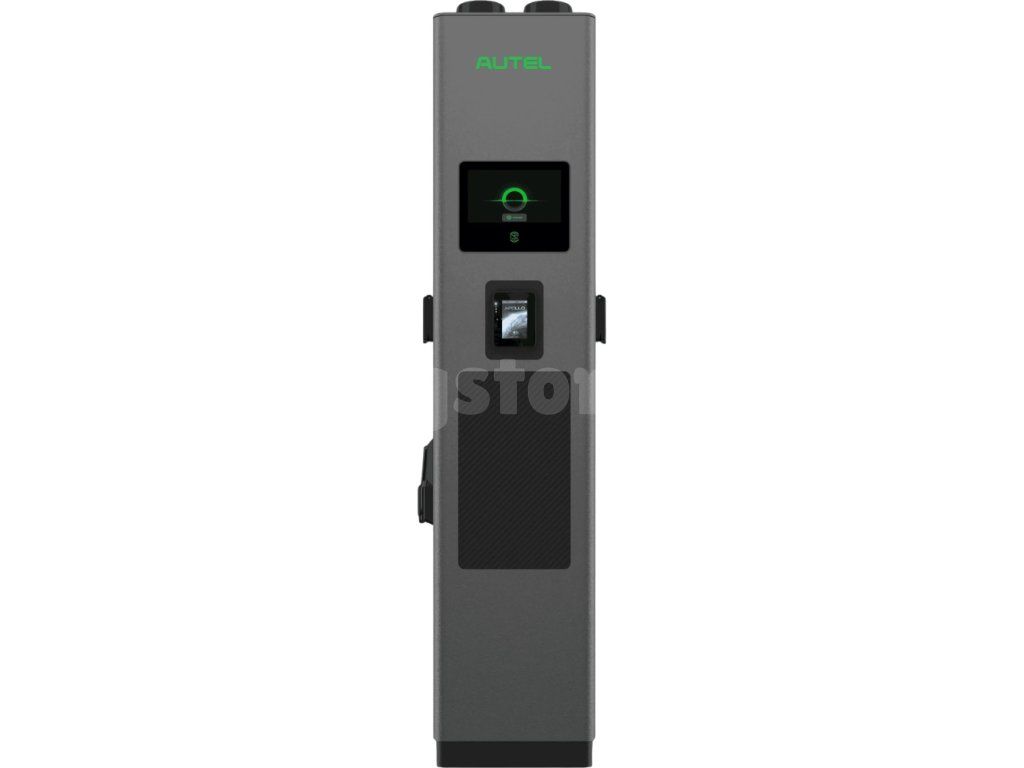

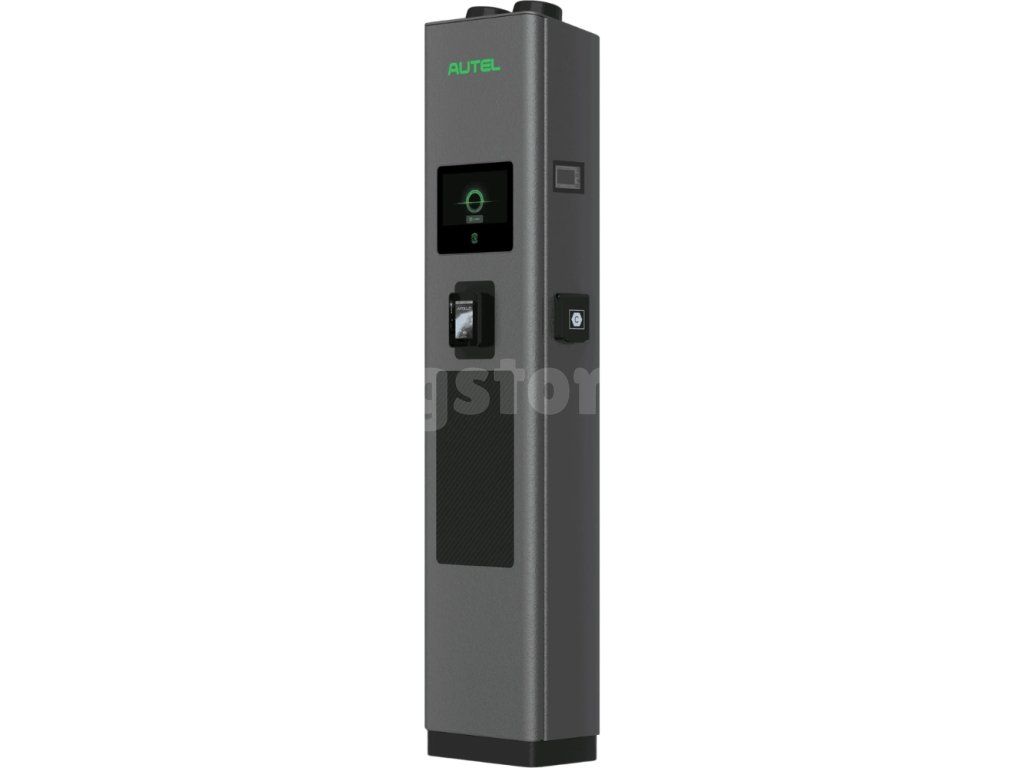

When purchasing a charging station, you can choose betweentwo types of mounting. Wall mount offers the  MaxiCharger AC Ultra station and pedestal mount offers the MaxiCharger AC Ultra Street

Features

• 3 charging mode modes
• Connection - Three phase up to 3x32A
• Input/output voltage - 400V±15%, three phase; 50Hz
• Network Type - TT, TN, IT
• Plug type - IEC 62196 type 2 socket or shielded socket
• Residual current detection - AC 30mA + DC 6mA
• Overcurrent, overvoltage, undervoltage protection
• Integrated surge protection
• Card reader - ISO 15693, ISO 14443
• Power measurement accuracy +/- 1.0% (built-in certified MID meter)

User Features

• Connect via Bluetooth, Wi-Fi, Ethernet, CAN, RS485 and 4G
• Use Autel Charge Cloud to manage stations remotely
• Indication of charging status on the clear display  or in the Autel Charge APP
• Payment authorization options: Credit card reader, RFID reader or Autel Charge APP

Updates

Software updates are made via OTA (Over-The-Air) updates that are downloaded via a web portal.

Certification and Warranty

The charging station is warranted for 36 months, which can be optionally extended. The device complies with key safety standards and regulations IEC 61851-1, IEC 62311, IEC 62479 and IEC 62955 and is certified to CE (TÜV) requirements.

Why choose Autel MaxiCharger AC Ultra 2×22 kW

• One of the fastest 2-vehicle charging stations
• Power of 19.2 kW per port
• Minimalist and practical design
• 8" LCD display ensuring a pleasant user interface

Supported languages

Device Specifications

• Rating of protection: IP54
• Operating height: 2,000 m
• Operating temperature: -40 - 55  °C
• Storage temperature: -40 - 85 °C
• Dimensions: 625 x 320 x 170 mm

Package Content

• MaxiCharger AC Ultra
