Autel MaxiCharger DC Compact

Product detailed description

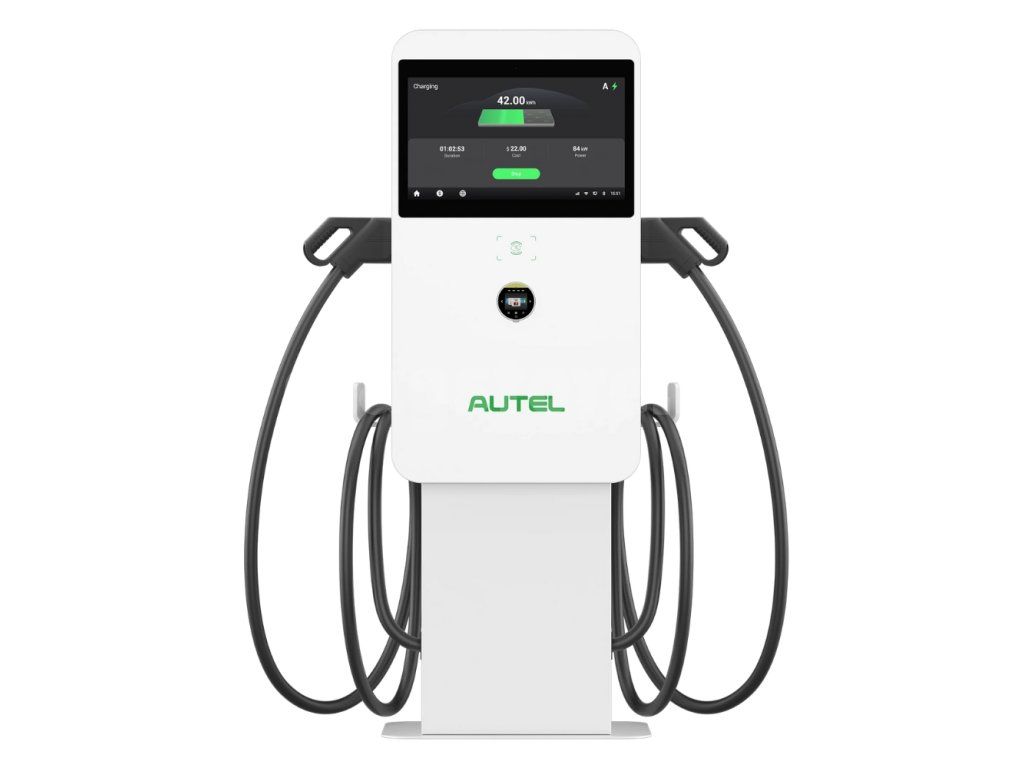

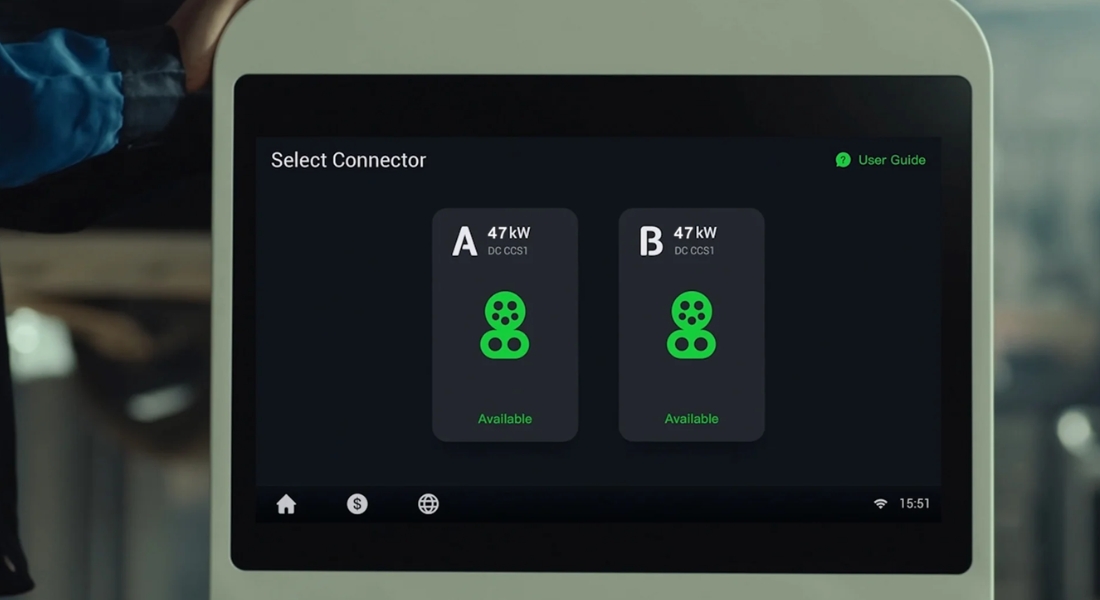

Autel MaxiCharger DC Compact  is a DC fast charging station for electric vehicles. It allows connection of up to 2 vehicles. It has a power output of 47 kW and can generate a range of approximately 130 km/30 min. Using dynamic load balancing (DLB), the fast charger can charge 2 vehicles simultaneously and dynamically share the energy between them. The charging station also features a 21.5" LCD display with IK10 protection, which can be used for monitoring charging data and switching languages as well as an advertising area. It is ideal for electric vehicle fleets, dealerships, shopping malls, parking lot owners etc. The fast charging station supports credit card reader, RFID and pay by through the app. It is also ready for plug-and-charge function.

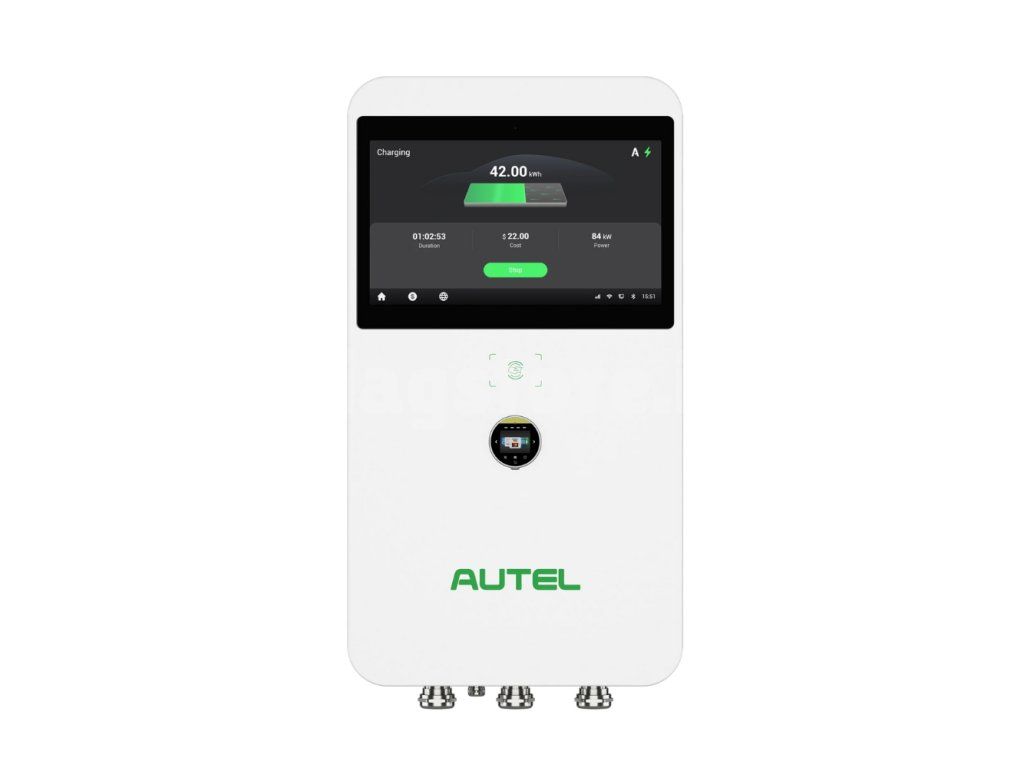

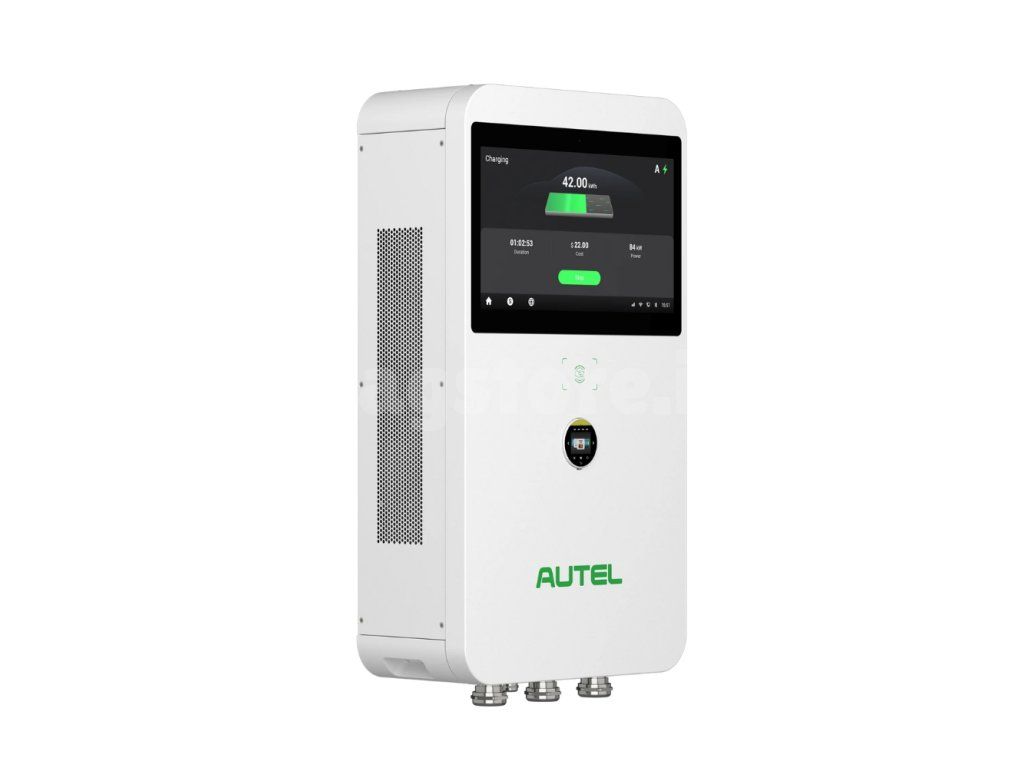

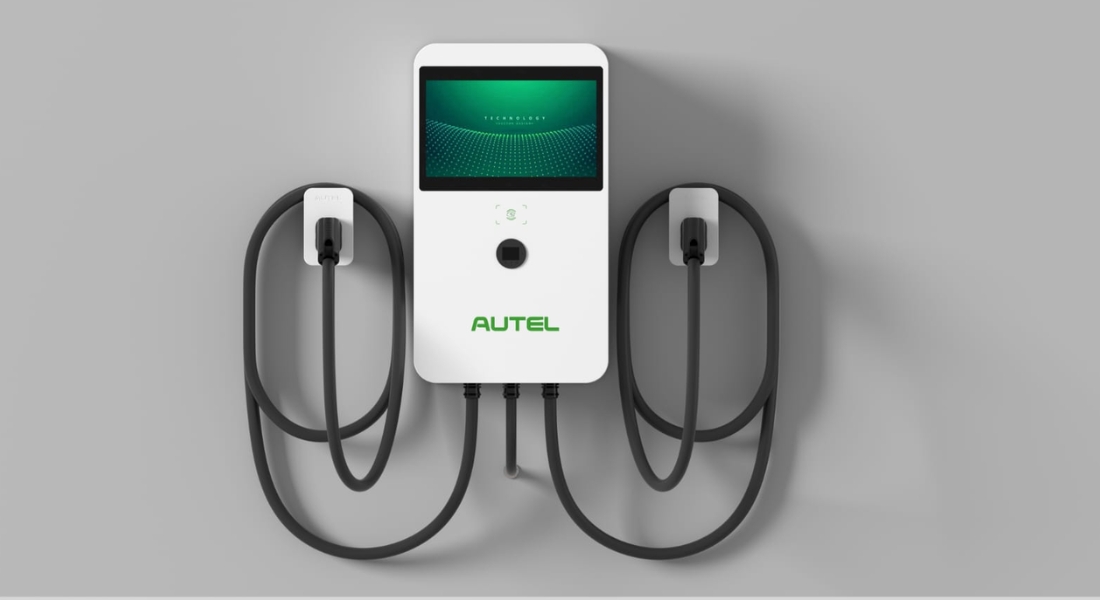

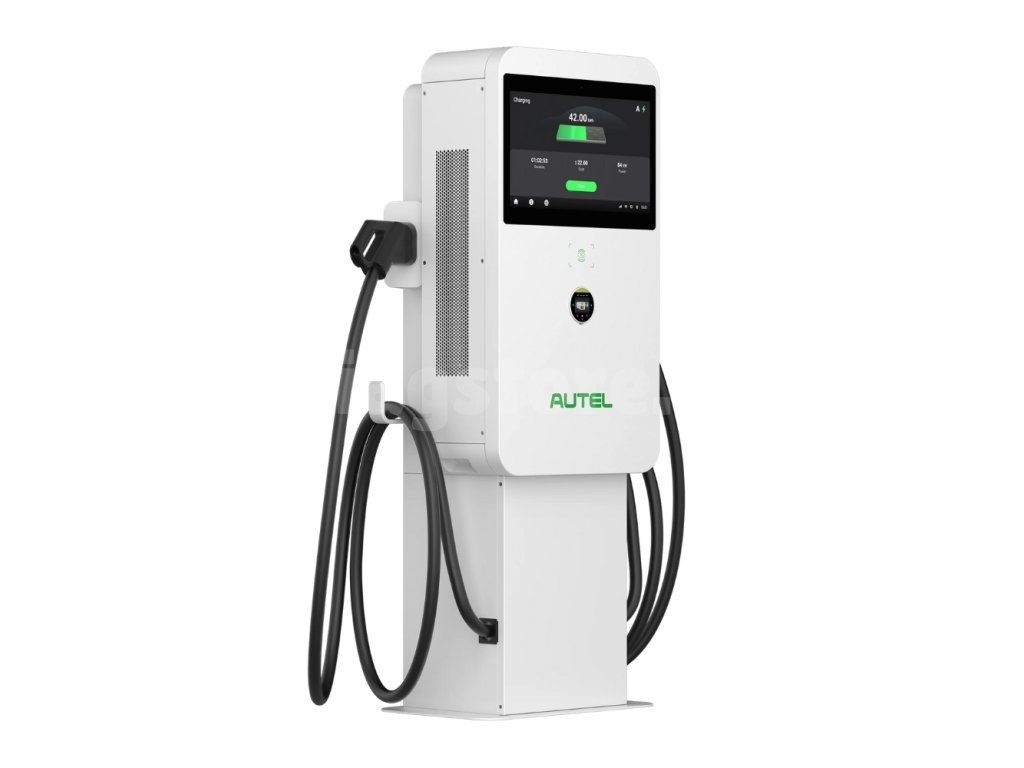

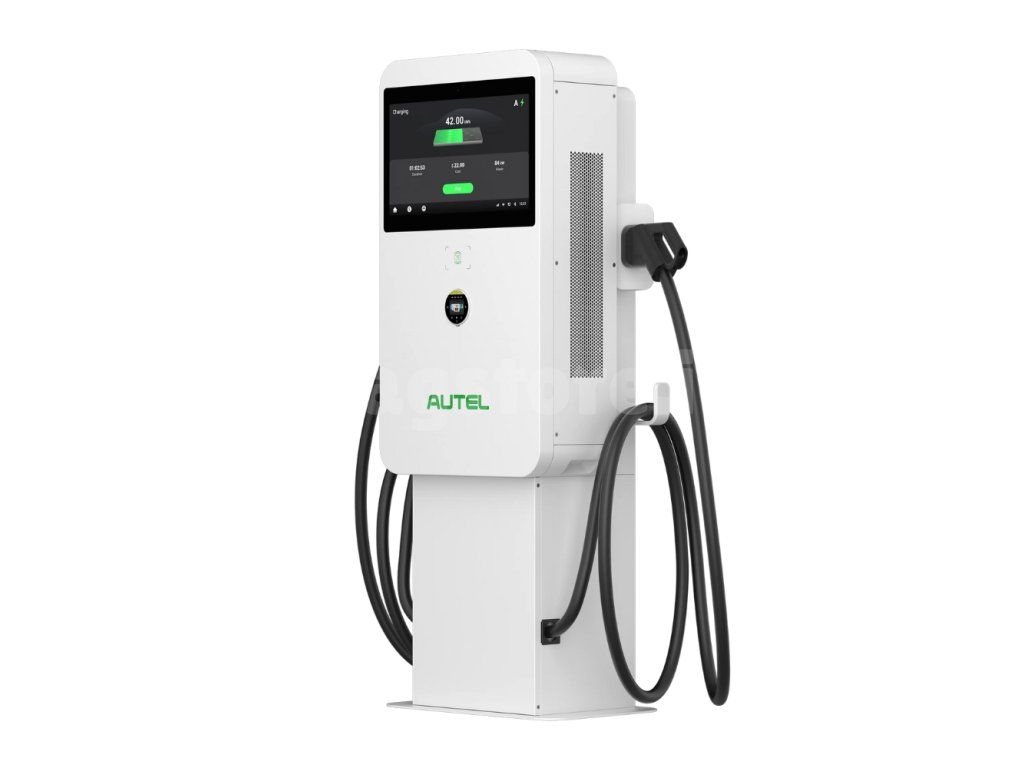

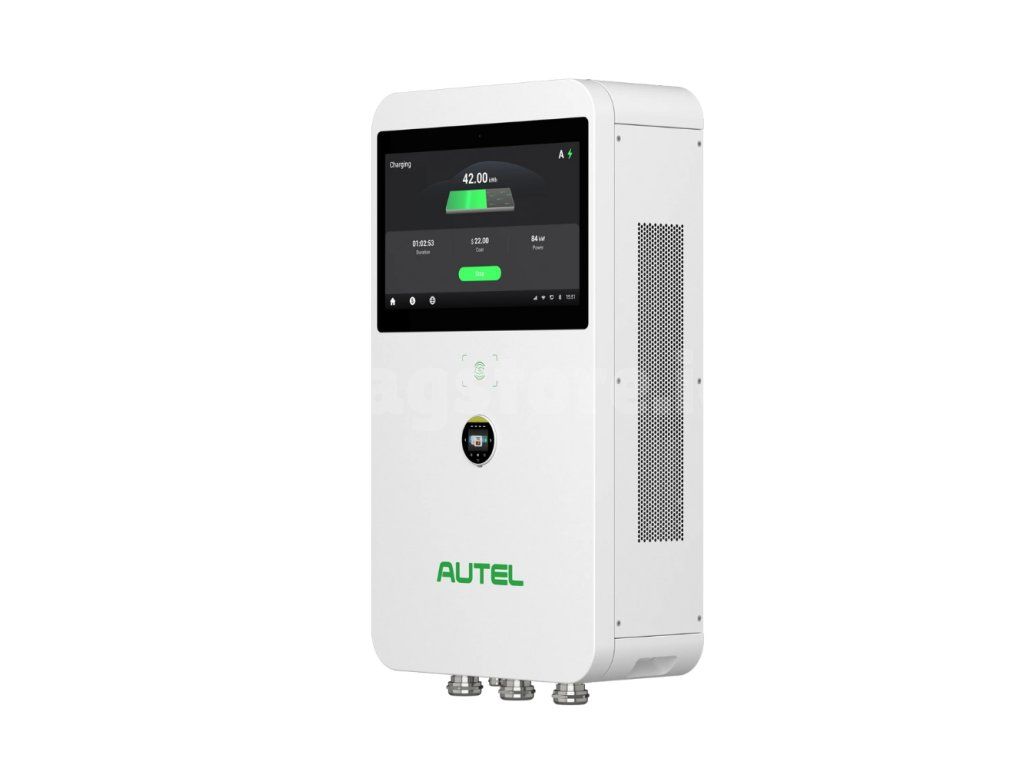

Autel MaxiCharger DC Compact comes in a choice of two installations - fixed and mobile on wheels.

Features

• Grounding system - 3P, N, PE
• Input voltage - 3-phase 400V AC +/- 10%
• Input frequency 50 Hz
• Efficiency ≥99%
• 4 charging mode modes
• Output power 50 kW and voltage 150 - 950 V
• 2 outputs

User Features

• Connection via Bluetooth, Wi-Fi, Ethernet, CAN, RS485 and 4G
• Indication of charging status on the clear display  or in the Autel Charge APP
• Payment authorization options: Credit card reader, RFID reader or the Autel Charge APP

Updates

Software updates are made via OTA (Over-The-Air) updates, which are downloaded via a web portal.

Certification and Warranty

The charging station is warranted for 24 months, which can be optionally extended. The device complies with key safety standards and regulations IEC 61851-1, IEC 61851-23, IEC 61851-21-2 and ISO 15118 and is certified to the requirements of CE, EMC Class A.

Why choose Autel MaxiCharger DC Compact

• A 47 kW
• fast charging station
• Dynamic Load Management (DLB)

function

• Minimalist and practical design
• Mobile or fixed installation
• 21.5" LCD display guaranteeing a pleasant user interface and space for advertising

Supported languages

Device Specifications

• Rating of protection: IP54
• Charging cable length: 5.5m/7.5m (optional)
• Input cable length: 3m
• Operating height: 2,000m
• Operating temperature: -30 - 55°C
• Storage temperature: -40 - 70°C
• Dimensions: 1000 x 550 x 265 mm

Package Content

• MaxiCharger DC Compact
