Autel MaxiIM IM608 II Pro

Product detailed description

Autel MaxiIM IM608 II Pro is the ultimate key fob programming and diagnostic tool, providing comprehensive immobiliser service features as well as full car diagnostics suite. Includes more than 40 service functions, ECU coding, online ECU coding, ECU programming and much more.

Aside from its immobiliser and key fob programming features, Autel MaxiIM IM608 II Pro offers diagnostic features on par with Autel's flagship tools, such as the MaxiSYS Ultra. MaxiIM 608 II Pro can handle complete diagnostics of all control units on most European, Asian and American cars, as well as advanced service features. Unlike cheap universal diagnostic tools, it is not limited to basic diagnostics within the OBD-II standard and supports older vehicles (OBD-I). Autel MaxiIM IM608 II Pro can read readiness codes, reset maintenance intervals, diagnose and regenerate DPF, perform throttle body relearn, relearn automatic transmission settings, perform complete TPMS diagnostics, register battery, code the injectors, code keys and remotes and many other tasks. Both online and offline ECU coding and relearning are supported, as well as the ability to unlock previously hidden car features.

Autel MaxiIM IM608 II Pro is compatible with virtually all cars and control units on the market and supports all the crucial protocols, such as D-PDU, SAE J2534, RP1210, DoIP and CAN-FD.

Autel MaxiIM IM608 II Pro also supports access to control units protected by the Security Gateway Module (SGW/SFD) on FCA and VAG cars without the need for a hardware bypass - you will be offered an option to purchase a licence when you connect your tool to a car with secured control units.

IMMO functions

Autel MaxiIM IM608 II Pro is a specialised tool for working with immobiliser systems. It can access control unit information, learn key fobs, learn remotes, add new remotes and more.

Immobiliser and key fob programming

• PIN / CS code reading (if all keys are lost)
• key fob creation
• key fob and remote control relearning
• immobiliser data backup and restoration
• immobiliser control unit reset, customisation, restoration and re-programming
• BMW FEM / BDC key fob learning and unit customization
• VW / Audi / Seat / Skoda MQB key fob learning and creation (48 transponder 96-bit) after loss of all key fobs

Smart mode - learn key fobs automatically according to a guided wizard
Expert mode - advanced key fob learning
System auto-detection - make/model/year/system
PIN/CS code reading - used if all key fobs are lost
Key fob encoding
Remote control relearning
Resetting / customising immobiliser control unit
Restoring / encoding immobiliser control unit
Backup and restoration of immobiliser data
Learning key fobs and customizing Mercedes FEM/BDC unit
Adding key fobs (even if all key fobs are lost) for IMMO units on VW/Audi/Seat/Skoda - generation III, IV and V

XP400 programmer

This accessory is specially designed for VAG cars, and enables you to read and rewrite their transponder codes. It can generate new and clone existing key fobs, read and erase EEPROM and Freescale 9S12 MCUs. Works even while not connected to the vehicle. A supporting PC application is included. Functions:

• Key fob generation
• Key fob programming, add key fob, all key fobs lost
• Remote learning
• EEPROM read & write
• Transponder read & write
• IMMO ECU reset & relearn
• IMMO ECU refresh & coding

Supported Chips

• EEPROM-->>AMD-->>AM29FXXX series chip
• EEPROM-->> FUJITSU-->> MB29FXXX series chip
• EEPROM-->> ST-->> M29FXXX series chip
• Engine control module-->> ST-->> M29FXXX series chip
• IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
• IMMO-->> BMW-->>EWS3 module read/write function
• REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

Supported Boards

• APB113 PCF79XXadaptor board
• APB114 EWS3 adaptor board
• APB115 NEC Adapter board
• APB118 NEC ELV adaptor board
• APB119 TB28FXXXadaptor board
• APB120 TMS370adaptor board
• APB121 AM29FXXX Adapter board
• APB122 AM29FXXX adaptor board1
• APB123 AM29FXXX adaptor board2
• APB126 M35080/D80 adaptor board
• APB127 MC68HC0(7)05BXX adaptor board
• APB128 MC68HC05X32 adaptor board

Autel MaxiIM IM608 II Pro is also compatible with the G-BOX2 and APB112 accessories (purchased separately).

Package Content

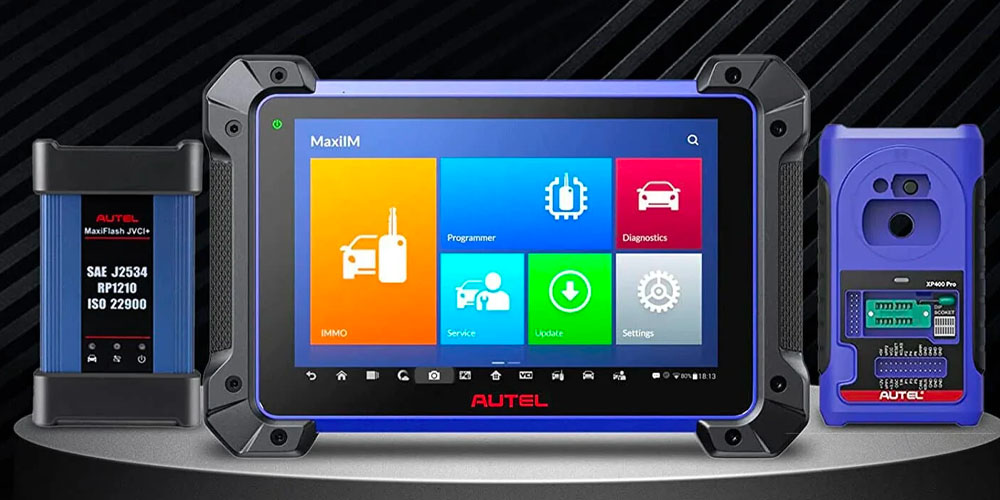

• Autel MaxiIM IM608 II Pro
• XP400 Programming Module
• JVCI+ ECU Reprogrammer
• Carry Case
• OBD-II Cable
• USB Cable (2m)
• Connect Cable
• USB Cable
• AC/DC Adapter (12V)
• AAC001
• APC101 (USB Cable)
• APB129 (EEPROM Adapter)
• APB125 (Mercedes Infrared Collector)
• APB104 (MCU_FQFP64)
• APB105 (MCU_FQFP80)
• APB106 (MCU_FQFP112)
• APB107 (MCU_FQFP144)
• APB108 (MCU_FQFP176)
• APB109
• APA002 (EEPROM Socket)
• APA101 (Signal Cable)
• APA103 (EEPROM Clamp)
• APA107 (ECU Clamp)
• APA108 (MCU Clamp)
• APA109 (MC9S12 Clamp)
• USB to Ethernet Adapter
• Quick start guide available for online download
• Detailed user manual available for online download (approximately 200+ pages)
