Autel MaxiSys MS909S2

Product detailed description

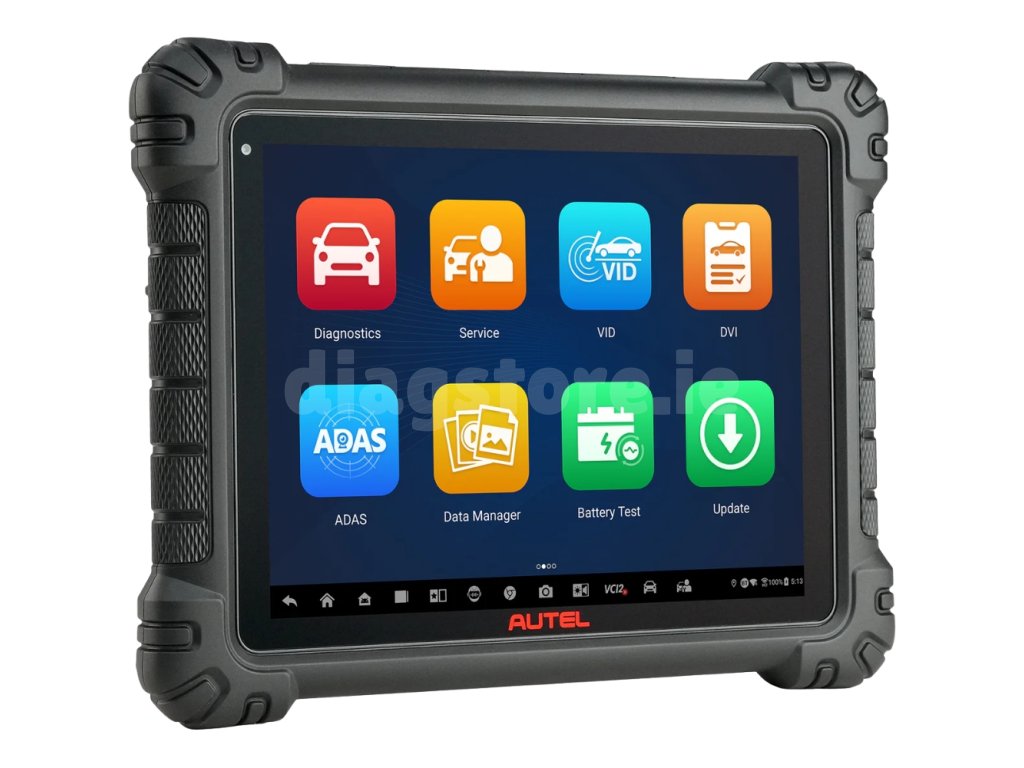

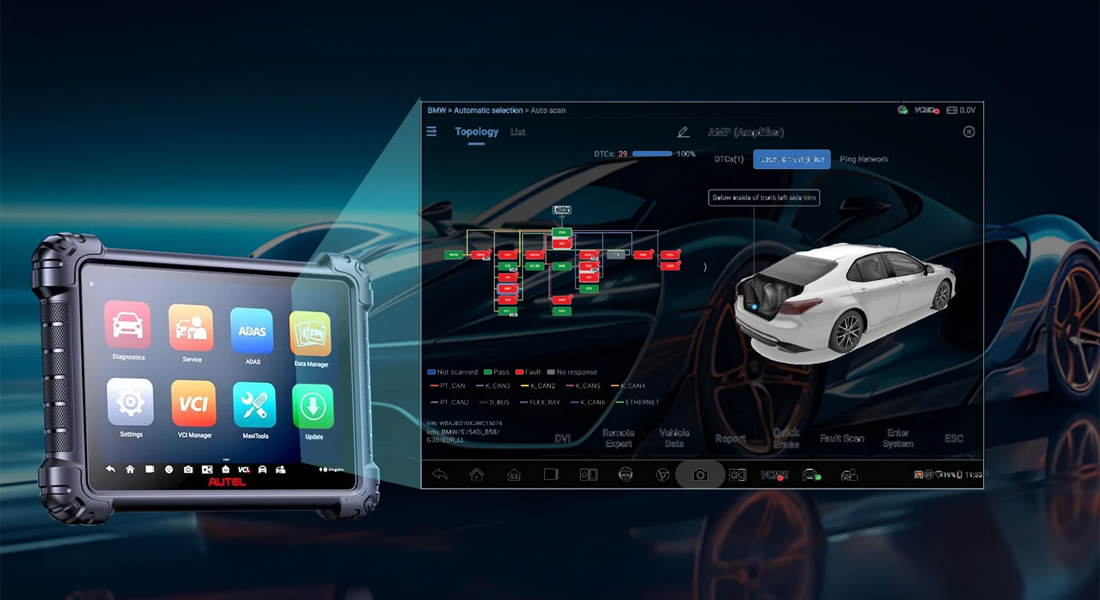

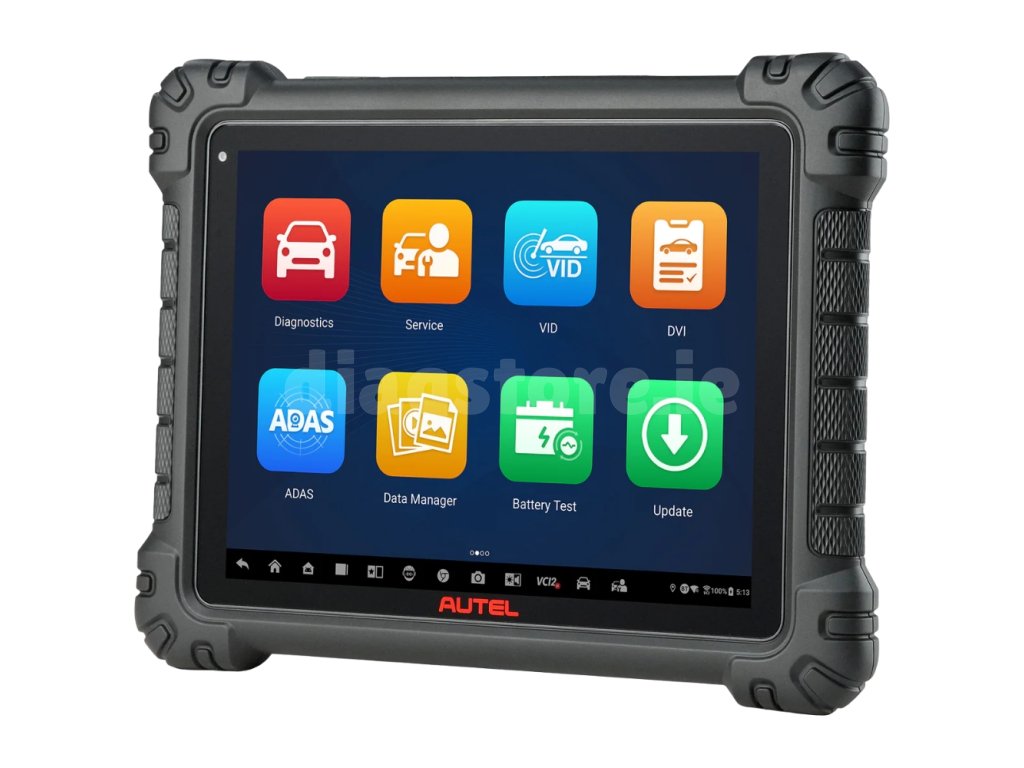

Autel MaxiSys MS909S2 is one of the most advanced diagnostic systems in the MaxiSys series and is designed for professional car service centers that work with modern vehicles and complex communication protocols. It offers complete diagnostics of all control units, advanced data analysis, ECU topology display (Topology 3.0), and support for online coding and ECU programming. The system is based on a powerful tablet with Android 13 operating system, an eight-core processor, 12 GB RAM and 256 GB internal memory, which ensures fast response even when working with large amounts of live data. It includes the MaxiFlash VCI2 interface, which supports communication via USB, Wi-Fi, and Bluetooth and complies with the SAE J2534, ISO 22900, and RP1210 standards for PassThru programming. A significant advantage is the AI voice assistant, which enables hands-free control of diagnostics (launching car scans, opening service functions, active tests, etc.). The MS909S2 also supports advanced digital vehicle inspection (DVI), including working with photos, tire measurements, and creating service reports.

A great advantage of Autel Europe diagnostics is direct SGW support at an unbeatable price. The best package for unlocking the security gateway on FCA, Mercedes, Nissan, Renault, and VAG vehicles can be found here

Diagnostic functions

• Control unit identification
• Reading error codes for all control units
• Deleting error codes from all control units
• Displaying live data
• Actuator tests
• Adaptation
• Coding
• Online coding
• Control unit programming
• Online control unit programming

Service functions

• Resetting service intervals
• ABS bleeding
• Injector coding
• Resetting the steering wheel sensor
• Resetting automatic transmission adaptations
• Battery registration
• TPMS reset
• Electric parking brake manipulation
• Basic throttle valve settings
• Air suspension calibration
• Cooling circuit bleeding
• Door and window settings
• Adaptive lighting calibration
• AdBlue reset
• NOx sensor reset
• Start/Stop system reset
• GPF replacement and regeneration
• DPF replacement and regeneration, and more...

OBD-II diagnostics

• Reading engine error codes - P0, P2, P3, U0 and specific manufacturer codes P1, P3, U1 - permanent and temporary faults
• Deleting engine error codes
• Turning off the emission warning light (MIL)
• Live engine data
• Freeze frame
• I/M readiness test
• Lambda sensor test
• EVAP system test
• Battery test
• Display vehicle information (VIN, CVN, and more)
• OBD-II error code database
• Support for most OBD-II test modes, including CAN, ISO9141, KWP2000, J1850 VPW, and J1850 PWM protocols

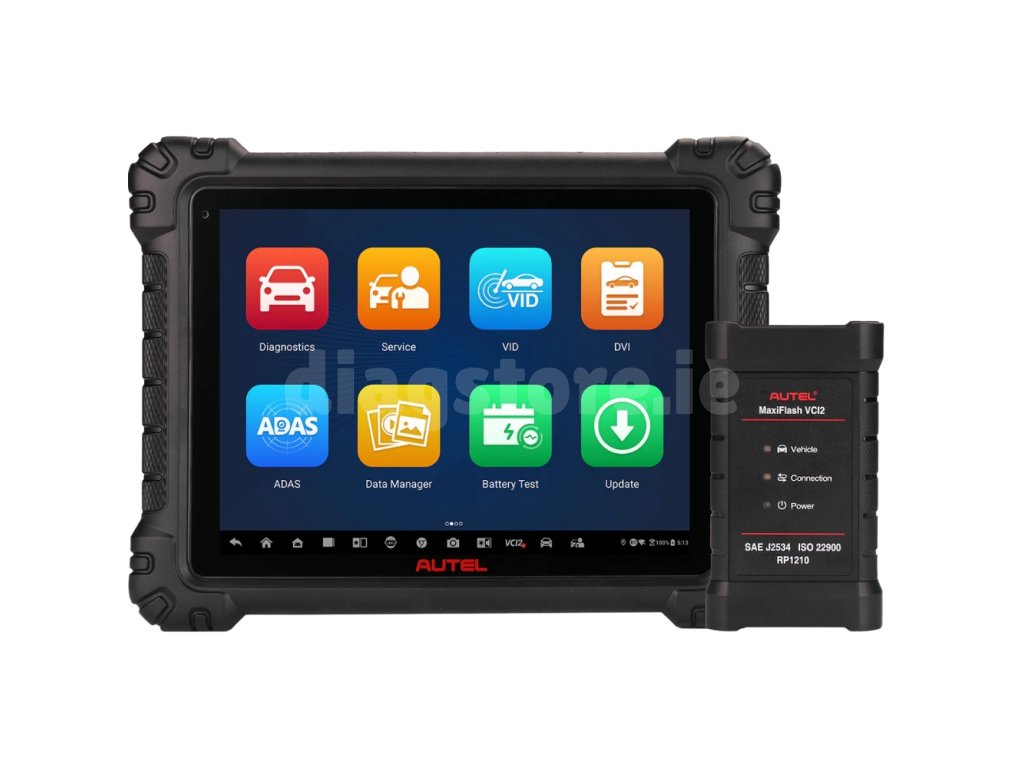

Autel MaxiFlash VCI2

Autel MaxiFlash VCI2 not only functions as a communication adapter for diagnostic tools, but also serves as an advanced interface for working with modern vehicles and their control units.

• More advanced than J2534: With support for three diagnostic protocols (D-PDU / SAE J2534 / RP1210), the VCI2 can work with more OEM diagnostic tools and allows for diagnostics, coding, and programming of a wider range of vehicles than standard J2534 programmers.
• VCI communication: Dual Wi-Fi mode – one channel is for direct connection between the tablet and the VCI, the other allows the tablet to connect to the internet for software updates and online services. VCI2 offers higher transfer speeds, more stable connections, and better resistance to interference (comparable to USB communication). The wireless communication range is up to approximately 50 m, and the diagnostic speed has been further optimized compared to the older generation.

Advanced coding and programming

In conjunction with Autel MaxiSys diagnostic tablets (e.g., MaxiSys MS909), MaxiFlash VCI2 allows you to perform diagnostic tasks that were previously only available to dealer diagnostics, including coding and programming control units.

• Coding: also known as teach-in program or adaptation, is used to reprogram the adaptive data of vehicle control modules after repairs or part replacements.
• Programming: automatically downloads the latest software version from the manufacturer's online database and transfers it to the vehicle's control unit. The process takes place online when the tablet is connected to the Internet, without the need for manual update checks.

With support for D-PDU, SAE J2534, and RP1210 protocols, the combination of MaxiFlash VCI2 and MaxiSys MS909 S2 enables diagnostics, coding, and programming of a wide range of passenger and commercial vehicles.

• Online ECU programming and coding without special connectors for BMW (F and G platforms)
• Online ECU programming for Mercedes-Benz chassis (204, 212, 207, 463, etc.) and online SCN coding (222, 212, 204, 205, etc.)
• Online ECU coding for Volkswagen, Audi, Porsche, Renault, and other brands
• ECU programming and coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
• Support for modern vehicle communication protocols: KWP, CAN, CAN-FD, and DoIP. With CAN-FD, the transfer speed is up to 14 times faster than with classic CAN, making VCI2 the ideal solution for the latest generation of vehicles.

Updates

You will receive free updates for 2 years with your purchase. After the free updates expire, you can continue to use the device, so further updates are not mandatory, but you will not have access to information and support for newer car models. The price list for updates can be found here.

Additional Equipment (not included)

• Autel MV480 videoscope (stand alone product)
• Autel MV105S videoscope
• Autel PS100 battery tester (stand alone product)
• Autel BT506 battery tester (stand alone product)

Brief overview of Autel models

• Diagnostic and service functions: MK808S, MK808K-BT, MK808S-TS, MK900, MK900TS, MX900, MX900TS
• Diagnostic and service functions and coding: MP808S, MP808S-TS, MP900, MP900BT, MP900TS, DS900, DS900BT, DS900TS
• Advanced models: MK906BT, MK906 Pro, MK906Pro-TS, MK908P, MS908S3, MS Elite II, MS906 Pro, MS906 Pro-TS, MS909, MS909EV, MS909S2, MS919
• Top models: Ultra Lite, Ultra, Ultra EV

• IMMO series: IM508S, IM608 II Pro

Why choose Autel MaxiSYS MS909S2?

• Next-generation advanced diagnostics with AI assistant

• Extended support for SGW and online functions
• 22+ supported languages
• New MaxiFlash VCI2 ready for modern vehicles
• Wide vehicle coverage including the latest models

Supported vehicles (1996 - 2026)

Asian

Acura, Daewoo, Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota

European

Abarth, Alfa-Romeo, Audi, BMW, Citroen, Dacia, Fiat, Ford, Jaguar, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Škoda, Smart, Sprinter, Vauxhall, Volvo, Volkswagen

American

Ford, GM, Chrysler

Supported languages

The device supports different languages. After receiving the device, send us the serial number and we will authorize the device for you in desired language. The translation may not be completely 100%. The scope of the translation is being extended and in our experience the translation is well usable and will make your work easier.

List of the supported languages: English, Arabic, Czech, Dutch, French, German, Hebrew, Indonesian English, Italian, Japanese, Korean, Persian, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Portuguese, Turkish, Thai, Vietnamese, Romanian.

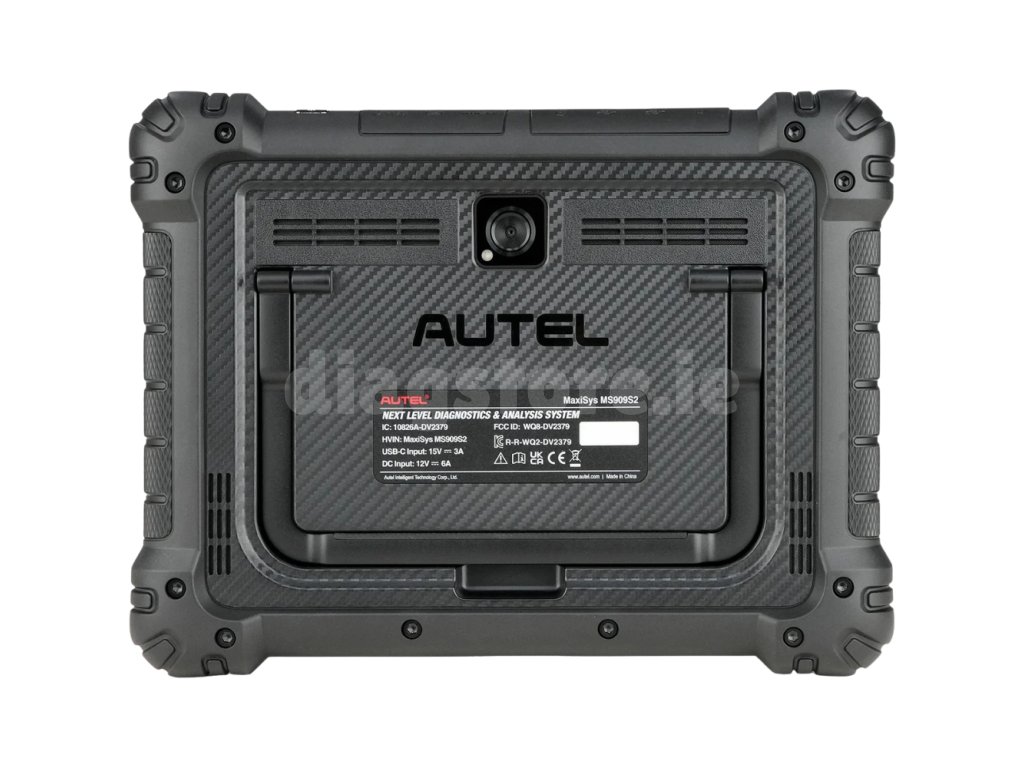

Hardware Specifications

• Operating system: Android 13
• Processor: octa-core
• Memory: 12 GB RAM / 256 GB storage
• Display: 11″ anti-glare, 2176 × 1600 px
• Battery: 15,000 mAh Li-pol
• Wireless communication: Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2
• Camera: front and rear 16 MP
• Interfaces: USB-A, USB-C, HDMI, SD card

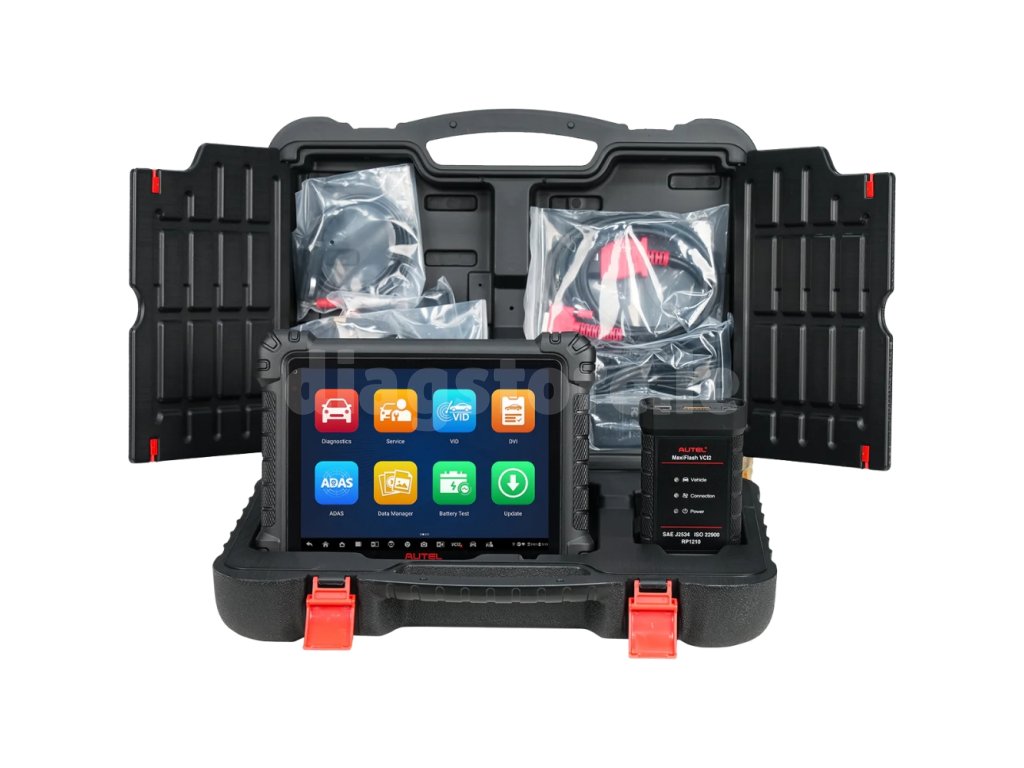

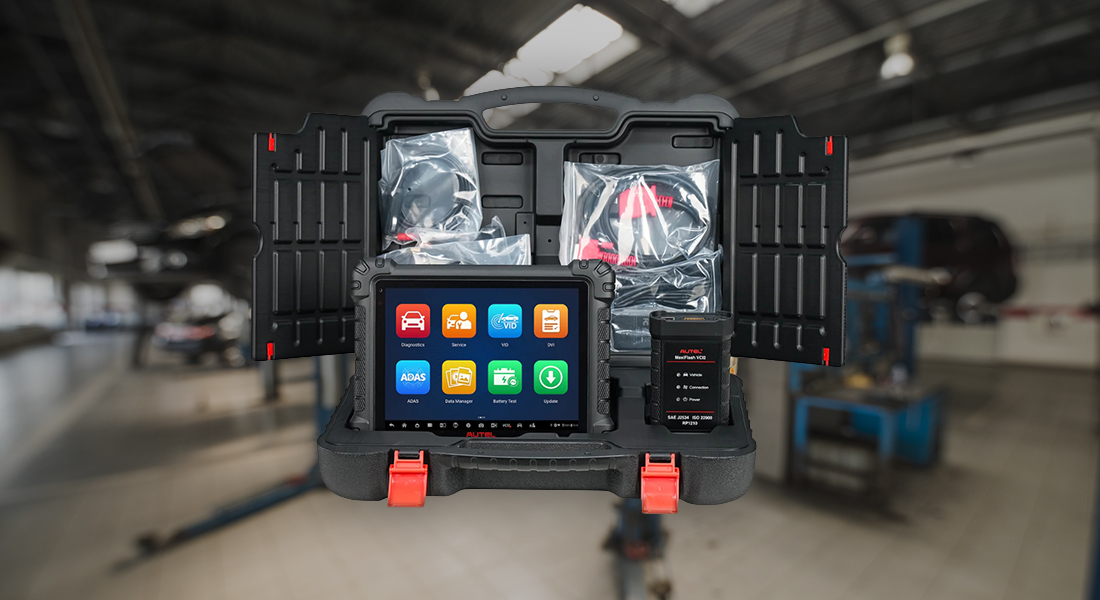

Package Content

• Autel MaxiSys MS909S2
• Autel MaxiFlash VCI2 diagnostic adapter
• OBD-II cable
• USB cable V2
• Practical carrying case
• Charger
• Soft cloth
• Power cables
• Protective case / stand
• User manual
• Quick start guide available for online download
• Detailed user manual available for online download (approximately 160+ pages)
