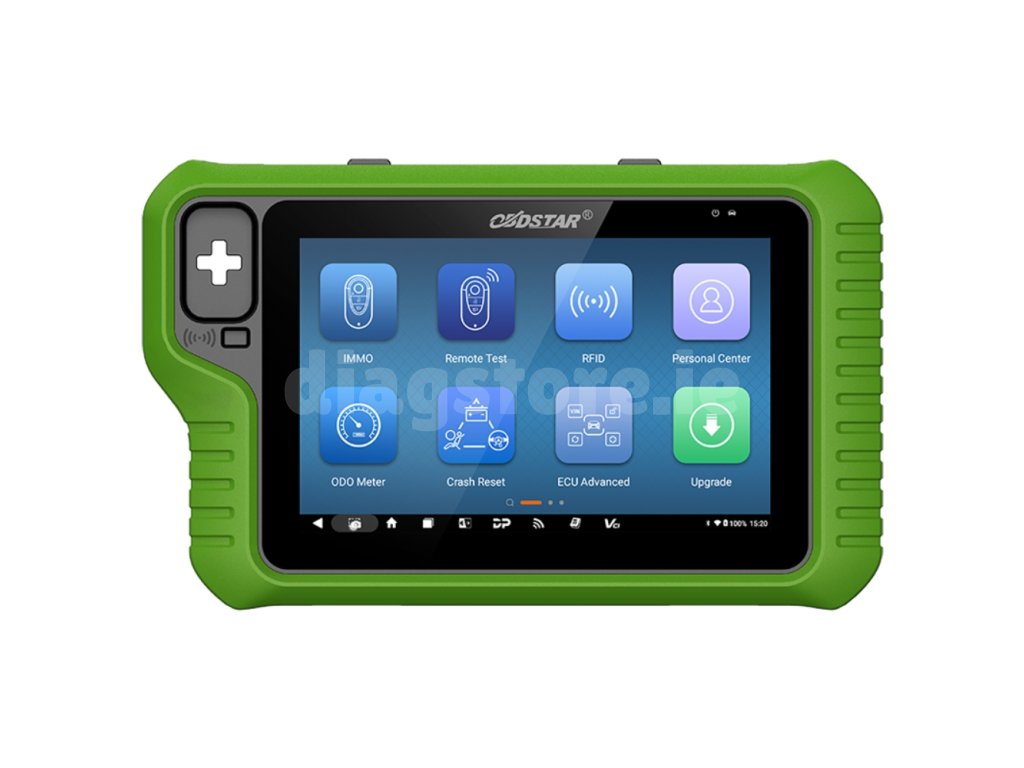

OBDStar Keymaster G3

Product detailed description

Keymaster from OBDStar offers all the necessary functions for advanced work with immobilizer units, keys, and remote controls. A big advantage is support for the latest CAN-FD, low-speed CAN, and DOIP protocols. The equipment also includes an RFID reader. The device is available in English.

Functions

• Key programming (immo)
• Remote control testing
• Transponder reading and writing
• Dealer key creation
• Start key creation
• Key recovery
• Eeprom / MCU reading and writing
• Unit unlocking
• Advanced unit coding
• OBD-II functions

Advanced Functions

• MQB loss of all keys (supports PROXIMITY AKL and BLADE AKL, unlimited synchronization code calculation)
• FORD/LINCOLN 2021 – key programming
• NISSAN SENTRA B18, ROGUE T33 loss of all keys
• Support for MOTO key programming (no PIN code required) for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and more
• Support for Marine key programming for BRP, KAWASAKI, YAMAHA and others
• Support for E-Car key programming for LI, NETA, LEAPMOTOR, SERES, AITO and others
• Support for ECU unlocking for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others
• Support for programming solutions for SMART 453 where all keys have been lost and all functions have been deactivated
• Support for programming solutions for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3 where all keys have been lost and all functions have been deactivated.
• Support for PIN code reading for vehicles that have lost all keys (no risk, your vehicle will not be immobilized) for Renault ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models manufactured after 2015.
• A paid software activation service is available for ODO METER, ECU Flasher, Crash Reset, Test Platform and other functions.

Updates

You will receive free updates for 2 years with your purchase. After the free updates expire, further updates are not mandatory. New updates can be purchased at a discounted price after the existing ones expire. Updates can also be purchased later after a certain period of time, but the price may be higher.

Why choose OBDSTAR Keymaster?

• One of the most advanced devices for working with keys and immobilizers
• Extensive accessories included with Key Master G3
• Wide vehicle support

Supported Vehicles

• Passenger cars
• Trucks
• Electric cars
• Motorcycles
• Boats

Hardware Specifications

• Operating system: Android 11
• Processor: 4-core processor with a frequency of 2.0 GHz
• Memory - storage: 4 GB / 64 GB
• Display: 8" touchscreen with a resolution of 1280 × 800 pixels
• Operating temperature: 0 - 50 °C
• Storage temperature: -20 - 70°C
• Operating humidity: 5 - 95% (non-condensing)
• Battery capacity: 9000 mAh

Optional Accessories (not included, can be purchased separately)

• Adapter set for motorcycles
• KeySim kit

Package Contents

• OBDSTAR Keymaster
• OBD-II cable
• MP001 - All-in-one programmer
• W004 connection cable
• W005 connection cable
• Multifunctional board for reading and writing EEPROM
• 8-pin chip soldering board
• P004 adapter
• P004 jumpers
• Cable with jumpers for ECU flashing
• Cable with jumpers for ECU cloning
• 6 types of jumper cables
• 3-in-1 cable with jumpers
• Charger
• User manual
