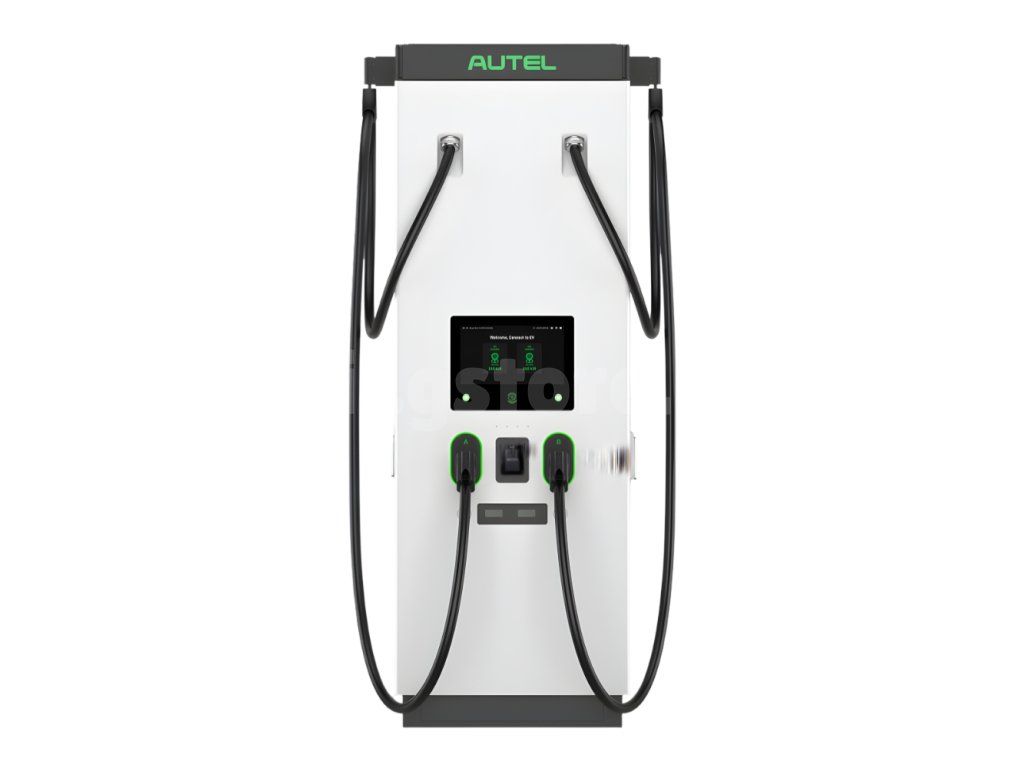

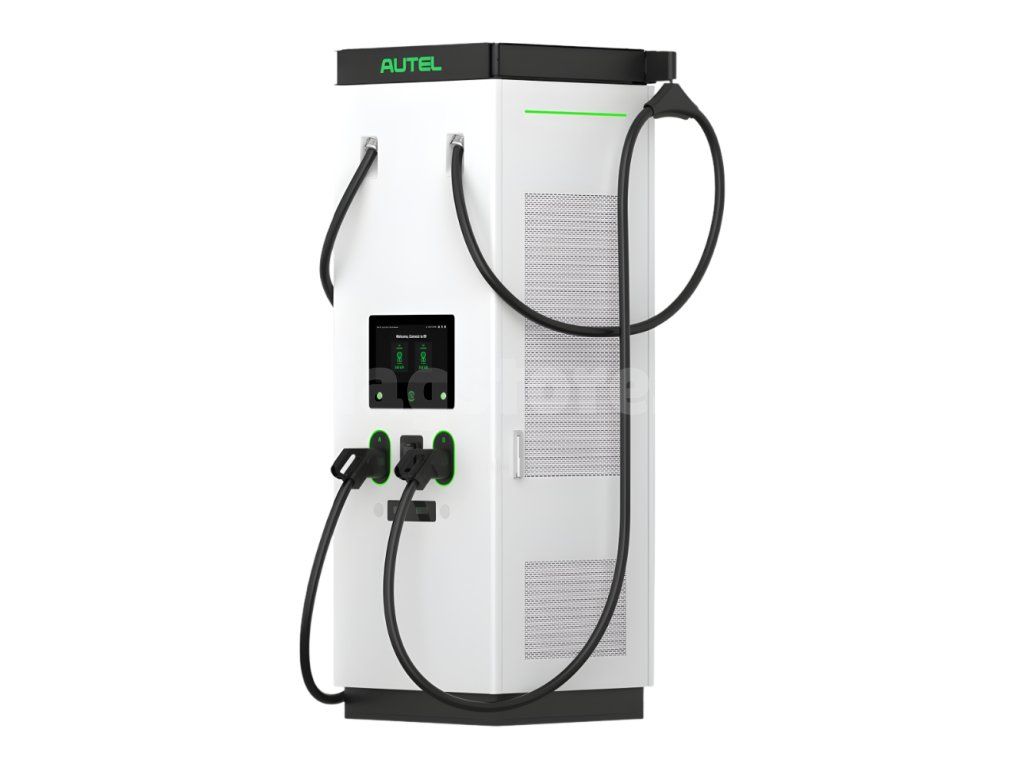

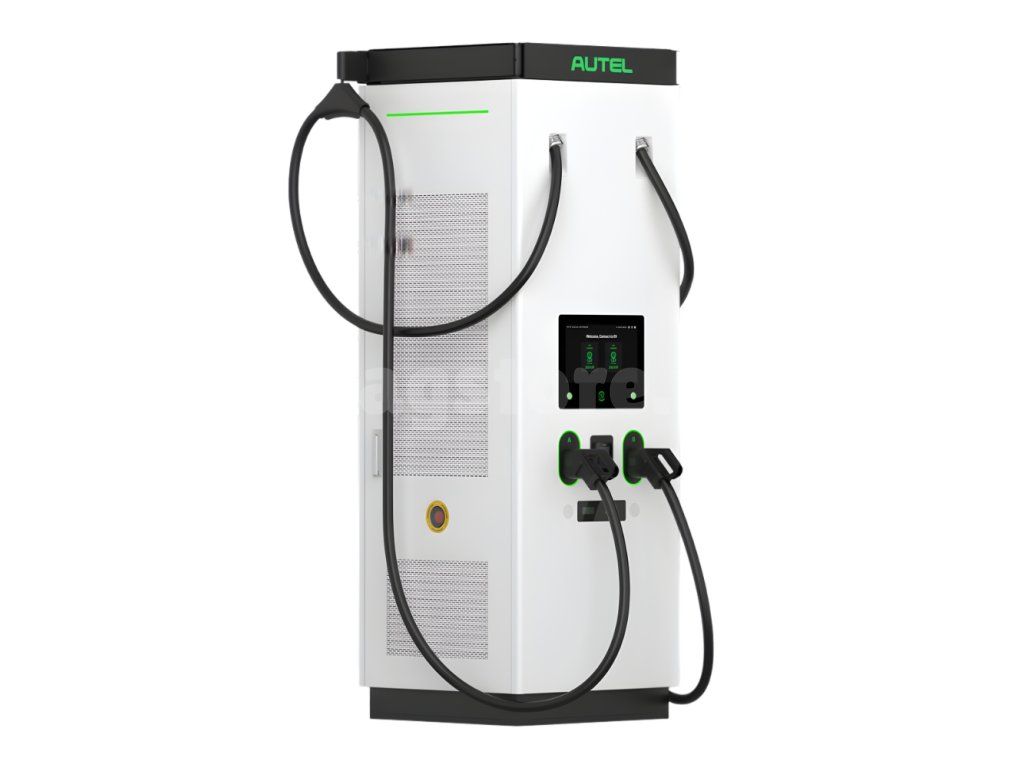

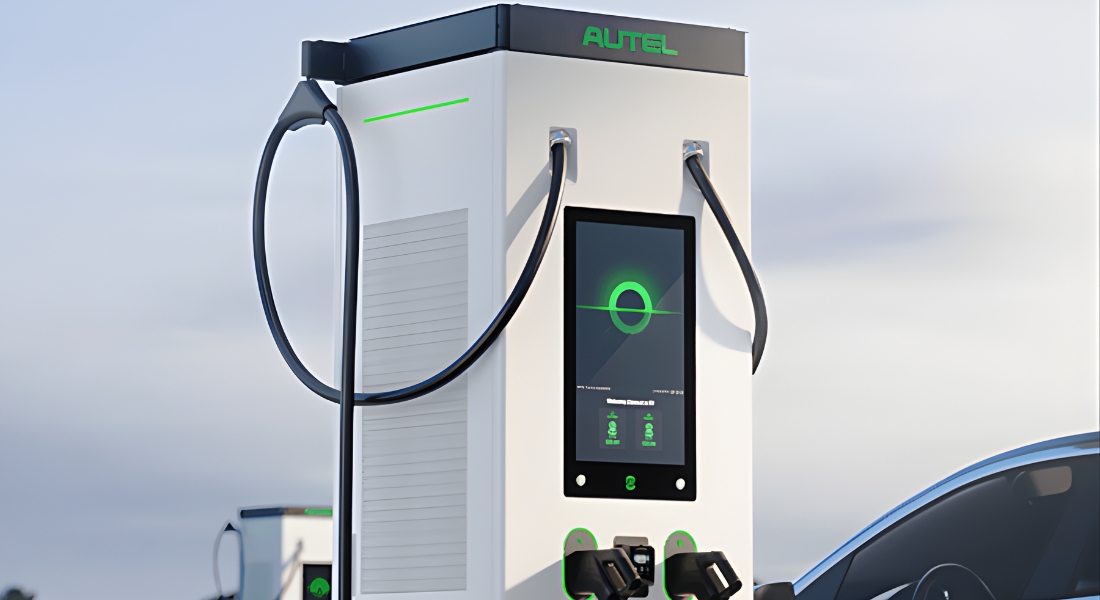

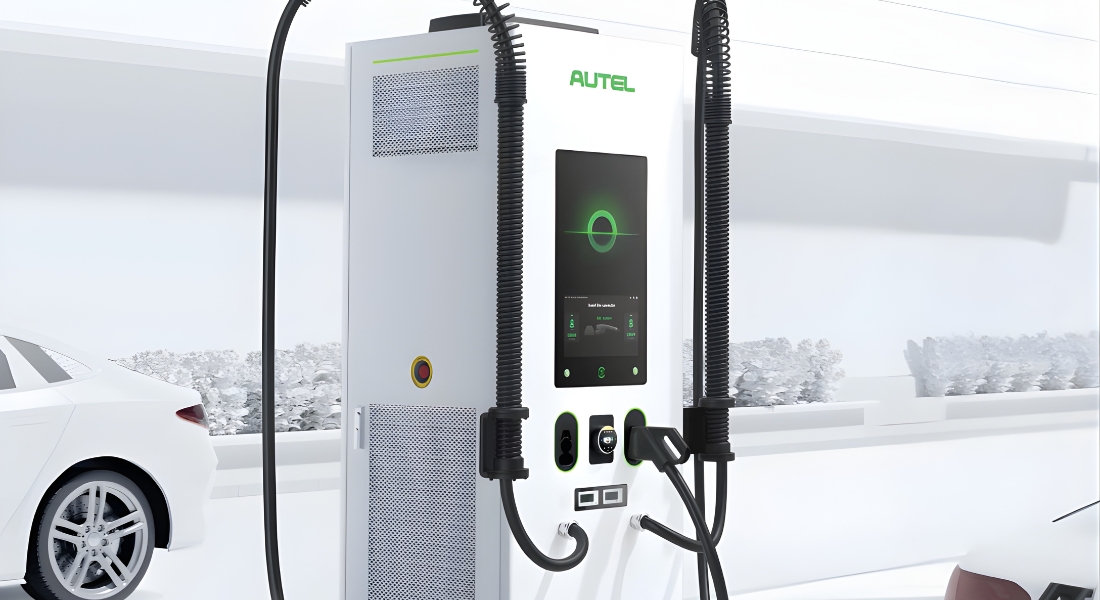

Autel MaxiCharger DH480 Liquid-Cooled

Product detailed description

Autel MaxiCharger DH 480 is a top-of-the-line DC charging station for electric vehicles. This station is among the fastest and most powerful chargers on the market, offering a range of up to 1 km per second. It allows parallel charging of up to four vehicles simultaneously  and offers up to 480 kW per port. Highly efficient cooling ensures continuous operation even under demanding conditions. It is the ideal solution for gas stations, rest areas, parking lots or development projects.

The charging station must be equipped with power modules with the required power output.

Features

• 4-port CCS2 configuration
• Output voltage 150–950 V DC
• Output current 500–650 A
• Power 480 kW
• Efficiency up to 96.5%
• Liquid cooling
• IP54 and IK10 protection
• 5G, Wi-Fi, Ethernet, or Wi-Sun connectivity
• Payment methods: RFID, QR code, credit card
• Plug & Charge support
• Optional display sizes: 8″, 15″, or 27″

Certifications and warranty

The charging station comes with a 24-month warranty. The device meets key safety standards and certifications CE, CB, UKCA, MID, EMC Class A, and ISO 15118.

Why choose the Autel MaxiCharger DH480

• Ultra-fast charging offering range of up to 1 km/s
• Charging with up to 480 kW per port
• 4 ports that enable parallel charging
• Minimalist and practical design
• Efficient cooling that ensures reliable performance even at high temperatures
• Plug and Charge feature for easy charging
