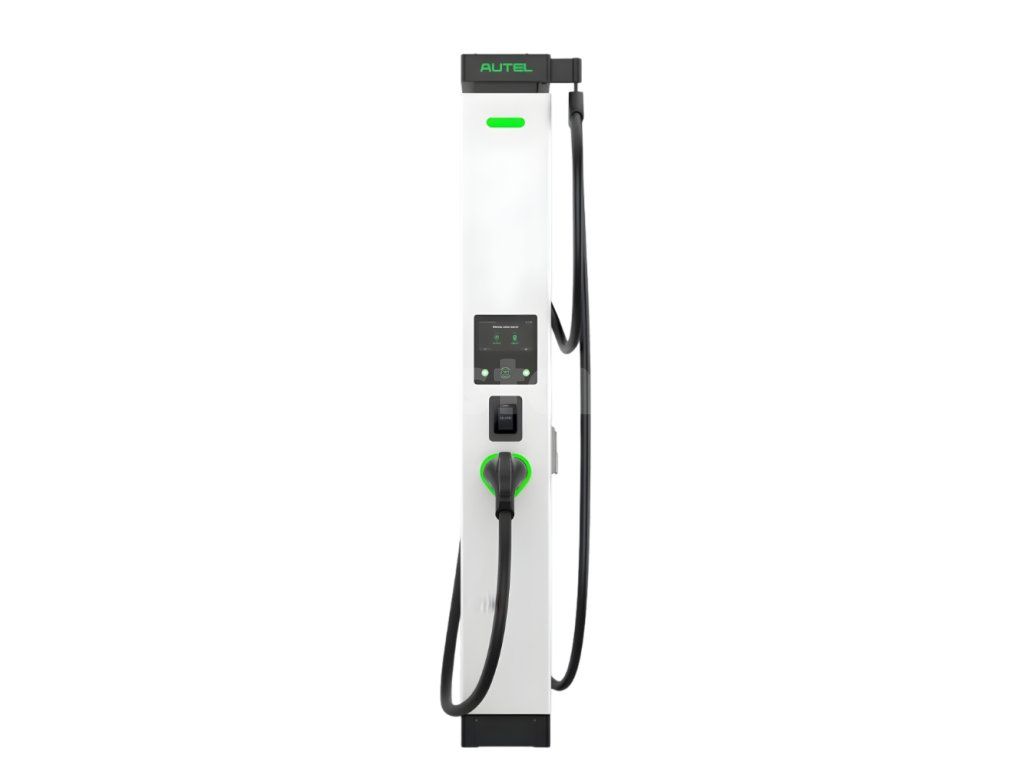

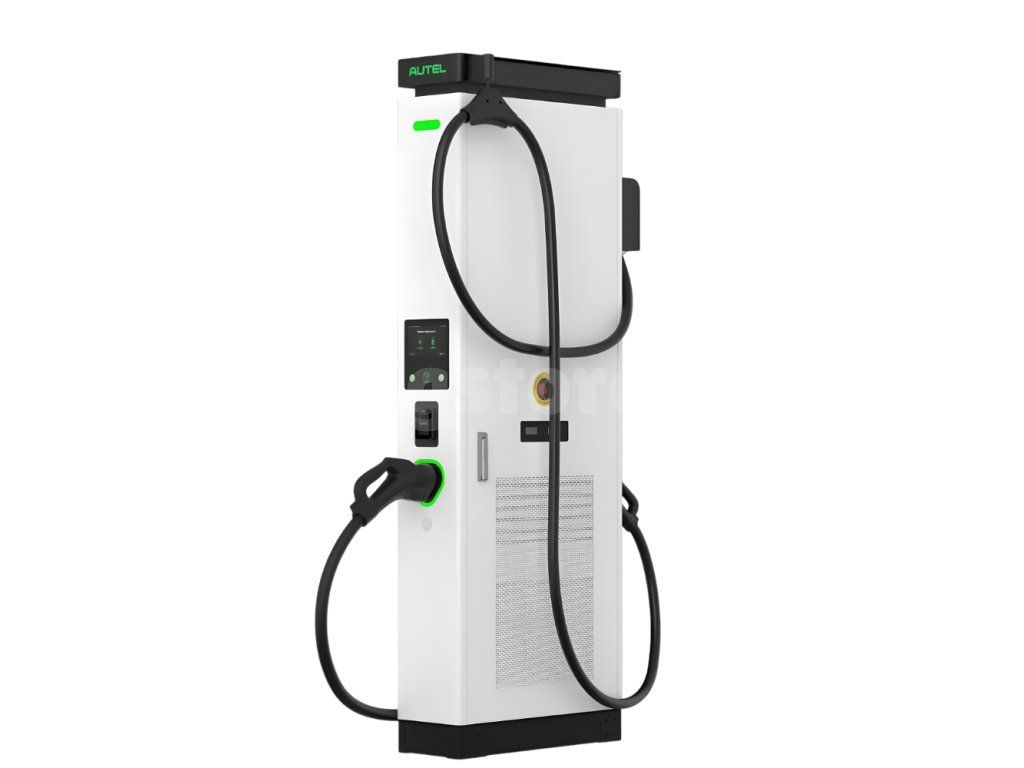

Autel MaxiCharger DT1500 Charging Station

Product detailed description

The Autel MaxiCharger DT1500 is a megawatt DC fast-charging station with a combined output of up to 1.2 MW for MCS and 480 kW for CCS2. It features liquid-cooled cables and thus is capable of long-term operation with very high currents in modern electric vehicles with high-voltage architecture. It offers two outputs in a combination of MCS and CCS2, a clear 8″ touchscreen and extensive communication options, including support for Plug & Charge. Naturally, it includes remote management, OTA software updates, and compatibility with payment terminals, ensuring maximum convenience for both operators and end users. Thanks to its high performance, ultra-fast charging of modern electric trucks and passenger cars is possible at a single terminal.

The charging station must be properly paired with a power source Autel MaxiCharger DS480.

Features

• Power 1.2 MW (MCS) and 480 kW (CCS2)
• Voltage range  150–1000 V
• Liquid-cooled charging cables with lengths of 3 m (MCS) and 5 m (CCS2)
• Payment terminal supportingmobile apps, RFID cards, QR codes, and credit cards (depending on the payment terminal)
• Plug&Charge and AutoCharge functions
• Outputs 2× DC in combination MCS + CCS2
• IP55 / IK10 protection rating
• Compliance with ADA requirements
• EMC Class A

Updates

Software updates are performed via OTA (Over-The-Air) updates, which are downloaded through a web portal or FTP.

Certification and Warranty

The charging station comes with a 24-month warranty, which can be optionally extended. The device complies with key safety standards and regulations IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht and is certified in accordance with the requirements of CE,  UKCA,  TR25, ETSI EN 303645, TUV, and EMC ClassA.

Why choose the Autel MaxiCharger DT1500

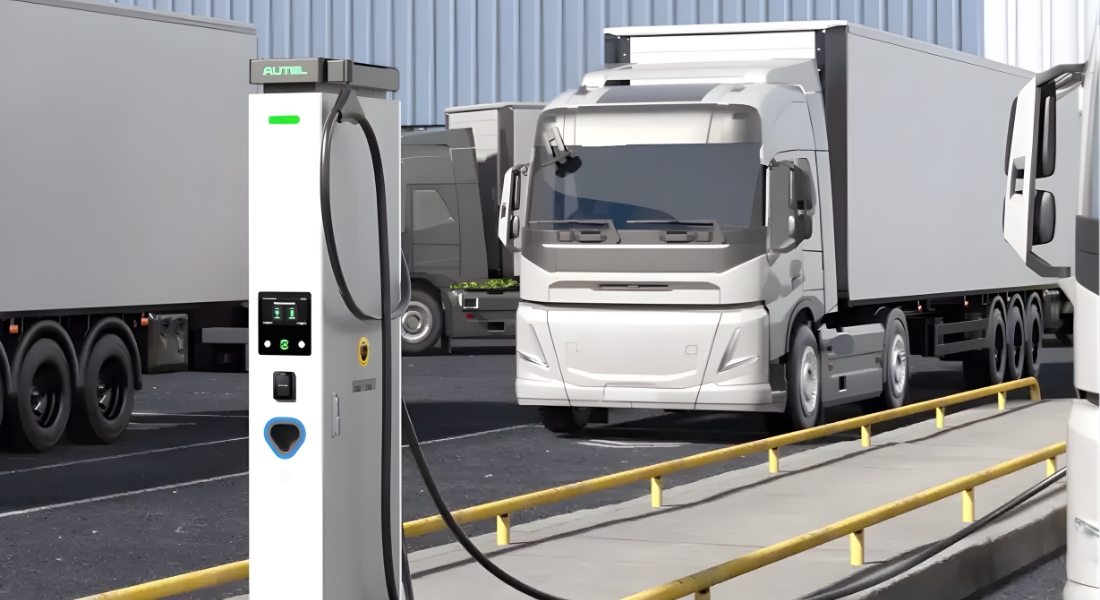

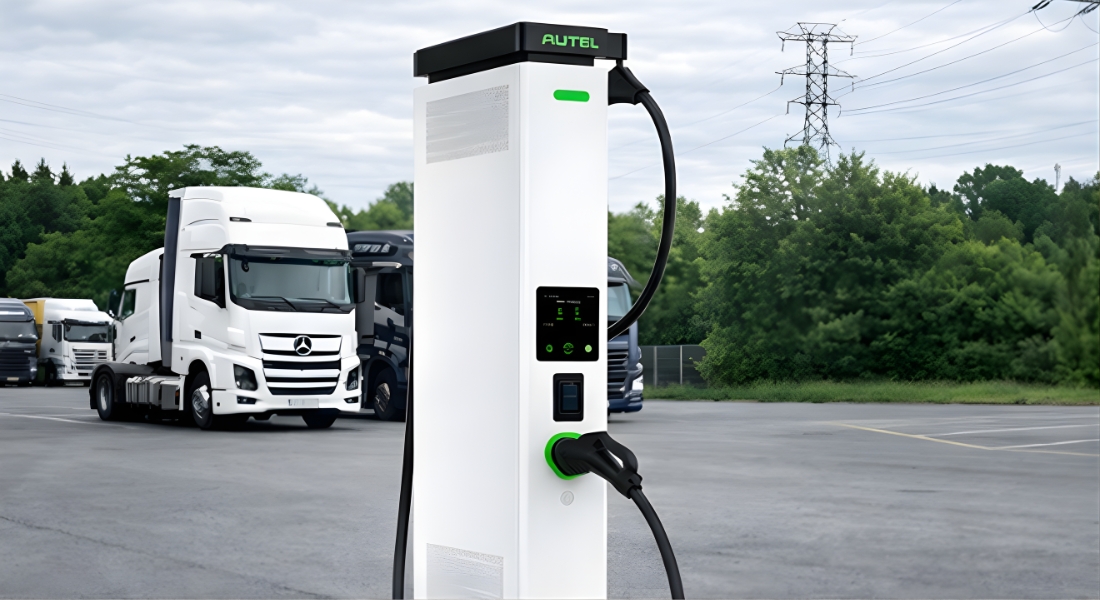

• Megawatt power output of up to 1.2 MW enables extremely fast charging of heavy-duty trucks, buses, and modern electric fleets
• The combination of MCS + CCS2 connectors provides flexibility for simultaneous charging of both electric trucks and passenger vehicles.
• Liquid-cooled cables for long-term operation without the risk of overheating or the need to limit power output
• Excellent connectivity and management thanks to OCPP, Plug & Charge, OTA updates and more
• Robust construction and high durability even in harsh outdoor conditions

Supported Languages

Device Specifications

• Protection rating: IP54
• Cable length: 3 m (MCS), 5 m (CCS2)
• Display: 8″ LCD display
• Operating altitude: 2,000 m
• Operating temperature: -30 – 55 °C
• Storage temperature: -40 – 70 °C
• Dimensions: 2300 x 800 x 2250 mm

Package Content

• Autel MaxiCharger DT1500
