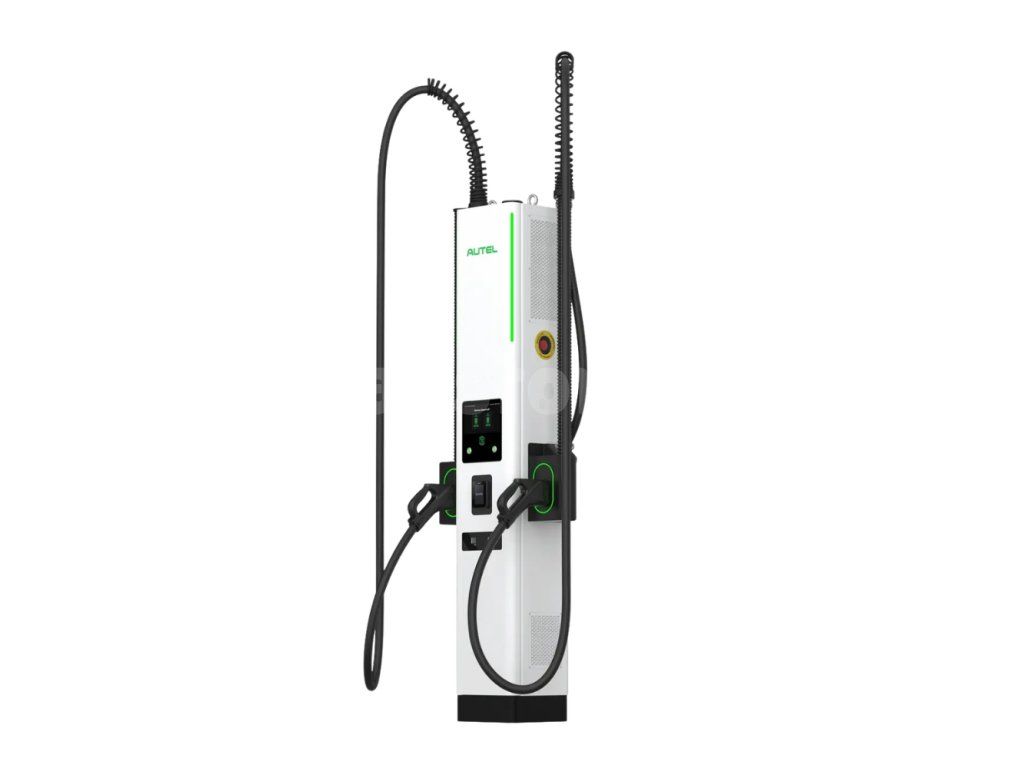

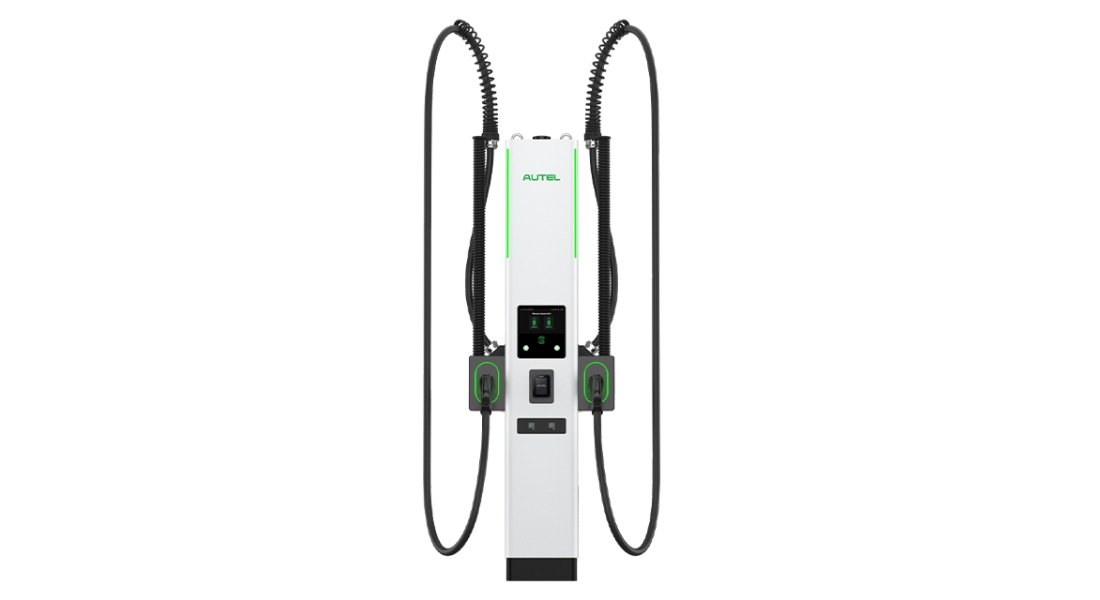

Autel MaxiCharger DT500 Charging Station

Product detailed description

The Autel MaxiCharger DT500 is a DC fast-charging station with a combined power output of up to 400 kW in the voltage range of 150–1000 V.& nbsp;It is equipped with one or two outputs (depending on the variant) featuring CCS2 connectors and uncooled charging cables with a nominal current of 380 A and a peak current of up to 500 A.  It features a clear 8″ touchscreen display, extensive communication options including support for the Plug & Charge function. It is the ideal choice for public fast-charging stations, corporate fleets, and logistics centers where fast and reliable HPC charging of electric vehicles is required.

The charging station must be properly paired with a power source Autel MaxiCharger DS480.

Features

• Power up to 400 kW DC
• Voltage range 150–1000 V
• Payment terminal supporting mobile apps, RFID cards, QR codes, and credit cards (depending on the payment terminal)
• Plug&Charge and AutoCharge functions
• Outputs 1 or 2 CCS2 connectors
• IP55 / IK10 protection rating
• ADA compliance
• EMC Class A

Updates

Software updates are performed via OTA (Over-The-Air) updates, which are downloaded through a web portal or FTP.

Certifications and Warranty

The charging station comes with a 24-month warranty, which can be optionally extended. The device complies with key safety standards and regulations IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht and is certified in accordance with the requirements of CE,  UKCA,  TR25, ETSI EN 303645, TÜV, and EMC ClassA.

Why Choose the Autel MaxiCharger DT500

• High power output of up to 400 kW enables fast DC charging of electric vehicles, including those with high-voltage architecture
• Excellent connectivity and management thanks to OCPP, Plug & Charge, OTA updates and more
• Wide range of payment and authentication options – RFID, mobile apps, QR codes, and payment terminals for maximum user convenience.
• Robust construction and high durability even in harsh outdoor conditions

Supported languages

Device Specifications

• Protection rating: IP54
• Cable length: 5 m, optionally 7.5 m
• Display: 8″ LCD display
• Operating altitude: 2,000 m
• Operating temperature: -30 to 55 °C
• Storage temperature: -40 to 70 °C
• Dimensions: 322 x 322 x 1650 mm

Package Content

• Autel MaxiCharger DT500
