Autel MaxiIM IM508S
Code: 765Related products
Product detailed description

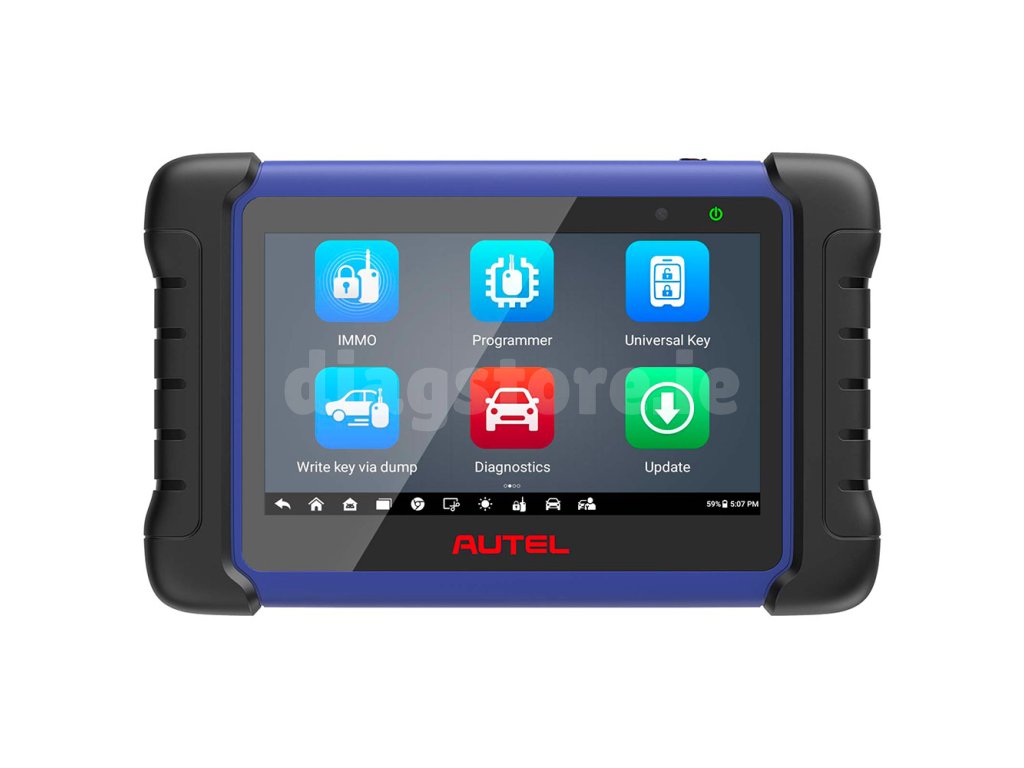

Autel IM508S is a professional key fob programming tool and diagnostic scanner. It provides an all-in-one immobiliser service suite together with a complete car diagnostics suite including more than 40 service functions.
Offers complete diagnostics of all control units on most European, Asian and American cars, as well as advanced service features. Not limited to basic diagnostics within the OBD-II standard, the tool also supports older vehicles (OBD-I). Autel MaxiIM IM508S can read readiness codes, reset maintenance intervals, diagnose and regenerate DPF, perform throttle body relearn, relearn automatic transmission settings, perform complete TPMS diagnostics, register battery, code the injectors, code key fobs and remotes and many other tasks. In addition to the ECU, the control units for the automatic transmission, ABS, airbags, instrument cluster and others are also supported.
Autel MaxiIM IM508S also supports access to control units protected by the Security Gateway Module (SGW/SFD) on FCA and VAG cars without the need for a hardware bypass - you will be offered an option to purchase a licence when you connect your tool to a car with secured control units.
Diagnostic Functions
- ECU identification
- Reading trouble codes of all control units
- Clear trouble codes of all control units
- Read live data
- Actuator testing
Service Functions
- Maintenance interval reset
- ABS bleeding
- Injector coding
- Steering wheel angle sensor reset
- Automatic transmission relearn
- Battery registration
- TPMS reset
- Electronic parking brake reset
- Throttle body relearn
- Air suspension calibration
- Coolant bleeding
- Doors and windows adjustments
- Adaptive headlights calibration
- adBlue reset
- NOx sensor reset
- Start/Stop reset
- GPF replacement and regeneration
- DPF replacement and regeneration and much more...
OBD-II Functions
- reading engine diagnostic trouble codes - P0, P2, P3, U0 and manufacturer specific codes P1, P3, U1 - continuous and intermittent DTCs
- clearing engine diagnostic trouble codes
- extinguishing check engine light (MIL)
- live engine data
- freeze frame engine data
- I/M Readiness test
- oxygen sensor test
- EVAP system test
- battery test
- display vehicle information (VIN, CVN and more)
- OBD-II diagnostic trouble code database
- support for most OBD-II test modes including CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM protocols
IMMO Functions
Autel MaxiIM IM508S is a specialised tool for working with immobiliser systems. It can access control unit information, learn key fobs, learn remotes, add new remotes and more.
Immobiliser and key fob programming
- PIN / CS code reading (if all keys are lost)
- key fob creation
- key fob and remote control relearning
- immobiliser data backup and restoration
- immobiliser control unit reset, customisation, restoration and re-programming
- BMW FEM / BDC key fob learning and unit customization
- VW / Audi / Seat / Skoda MQB key fob learning and creation (48 transponder 96-bit) after loss of all key fobs
Smart mode - learn key fobs automatically according to a guided wizard
Expert mode - advanced key fob learning
System auto-detection - make/model/year/system
PIN/CS code reading - used if all key fobs are lost
Key fob encoding
Remote control relearning
Resetting / customising immobiliser control unit
Restoring / encoding immobiliser control unit
Backup and restoration of immobiliser data
Learning key fobs and customizing Mercedes FEM/BDC unit
Adding key fobs (even if all key fobs are lost) for IMMO units on VW/Audi/Seat/Skoda - generation III, IV and V

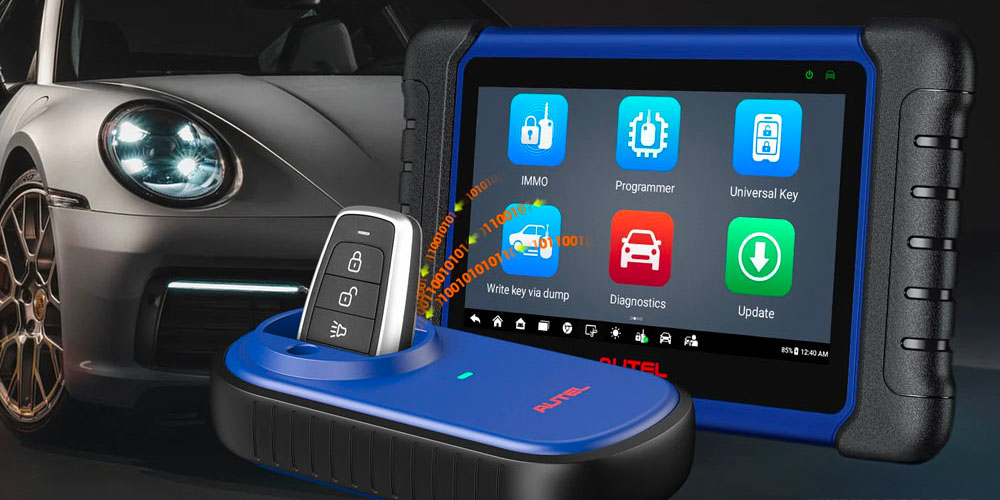

XP200 Programmer
This accessory is specially designed for VAG cars, and enables you to read and rewrite their transponder codes. It can generate new and clone existing key fobs, read and erase EEPROM and Freescale 9S12 MCUs. Works even while not connected to the vehicle. A supporting PC application is included. Functions:
- Key fob generation
- Key fob programming, add key fob, all key fobs lost
- Remote learning
- EEPROM read & write
- Transponder read & write
- IMMO ECU reset & relearn
- IMMO ECU refresh & coding
Autel MaxiIM IM508S is also compatible with the XP400, G-BOX2 and APB112 accessories (purchased separately).

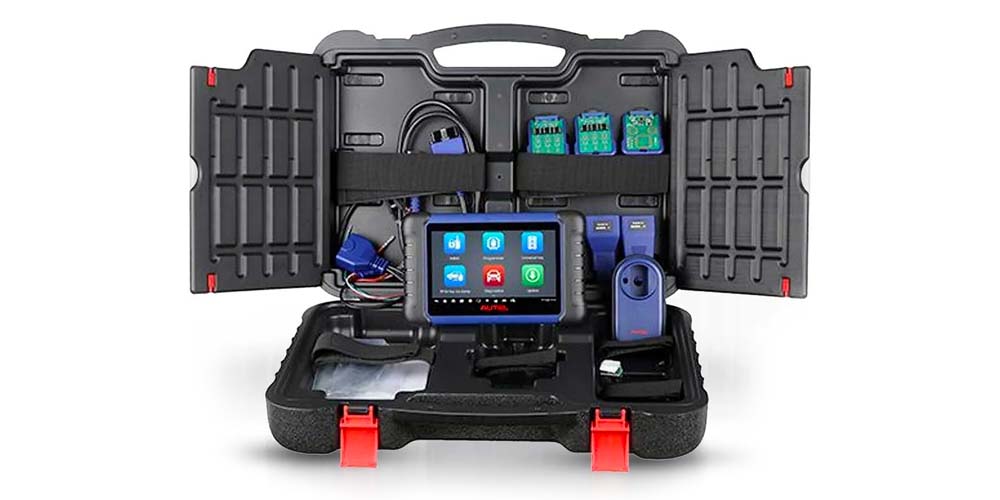

Package Content
- Autel IM508S
- OBD-II cable
- AAC001 - MED17 cable
- 20-pin adapter for KIA
- 10-pin adapter for KIA
- 17-pin adapter for Mazda
- 3-pin adapter for Honda
- XP200 programming module
- USB charger
- USB cable

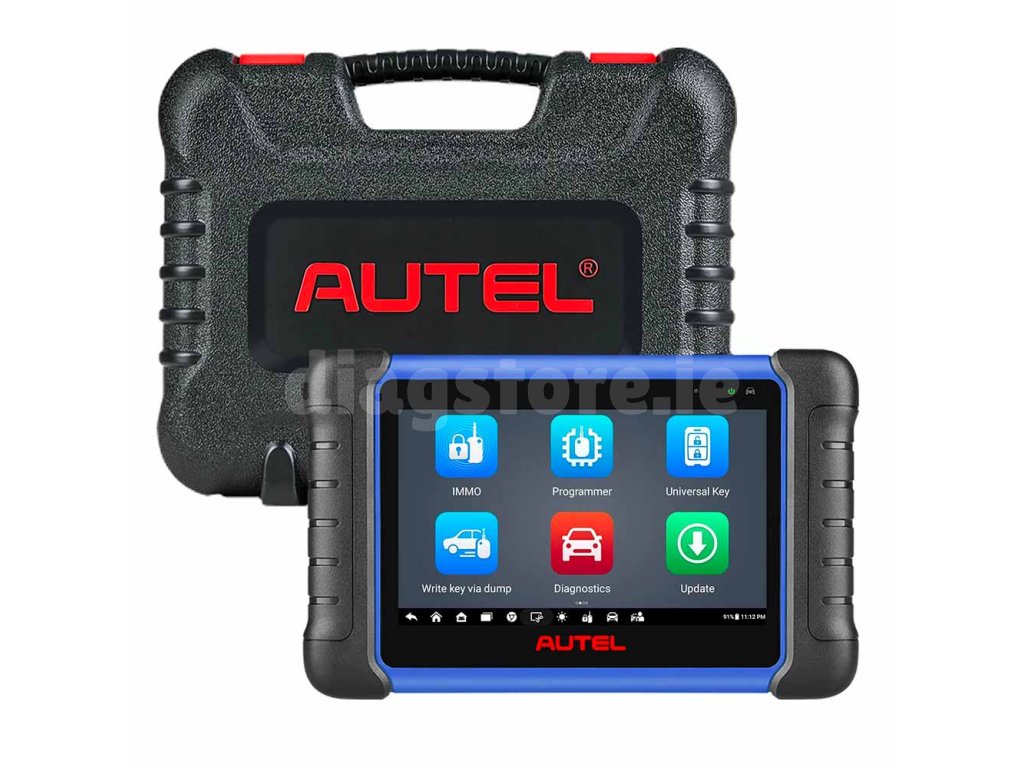

- practical carrying case
- Quick start guide available for online download
- Detailed user manual available for online download (approximately 100+ pages)
Additional parameters
| Category: | Universal Car Diagnostics |
|---|---|
| EAN: | 0632111345710 |
