OBDStar ECU Master (HW)

Code: 3065
€379 €308,13 excl. VAT Measure price:
In stock
Delivery options

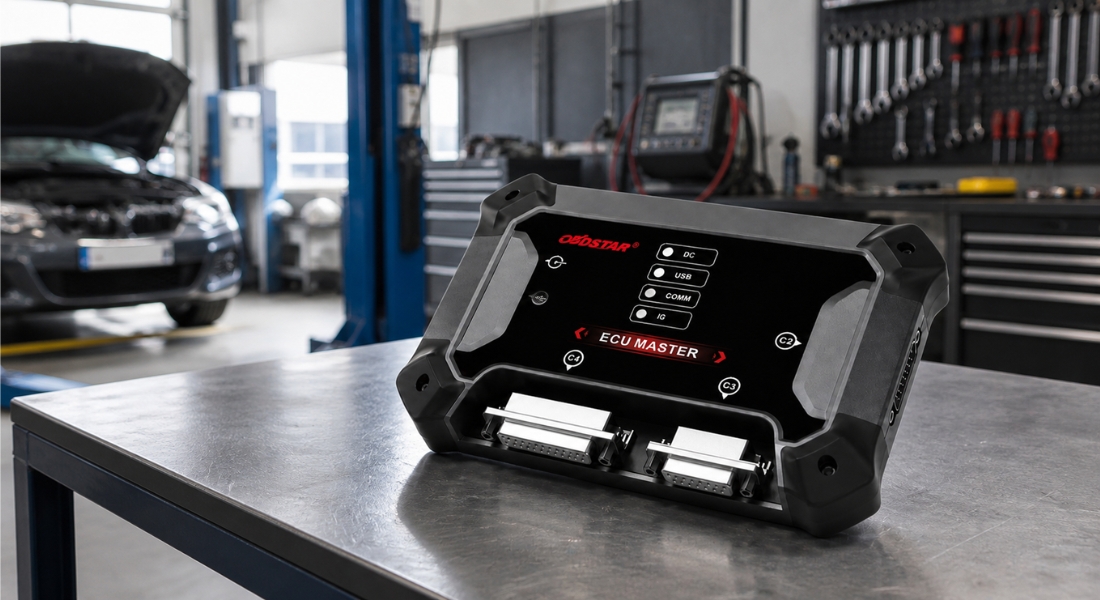

OBDStar ECU Master is a professional PC programmer designed to work with control units for passenger cars and electric vehicles. It supports OBD, BENCH, BOOT, JTAG, and BDM modes and, depending on the selected version, allows for ECU programming and cloning or the reset of airbag modules after an accident. The specific functions of the device correspond to the license selected at the time of ordering. Supported units may vary depending on the make, model, year of manufacture, unit designation, and current software version.

Detailed information

Product detailed description

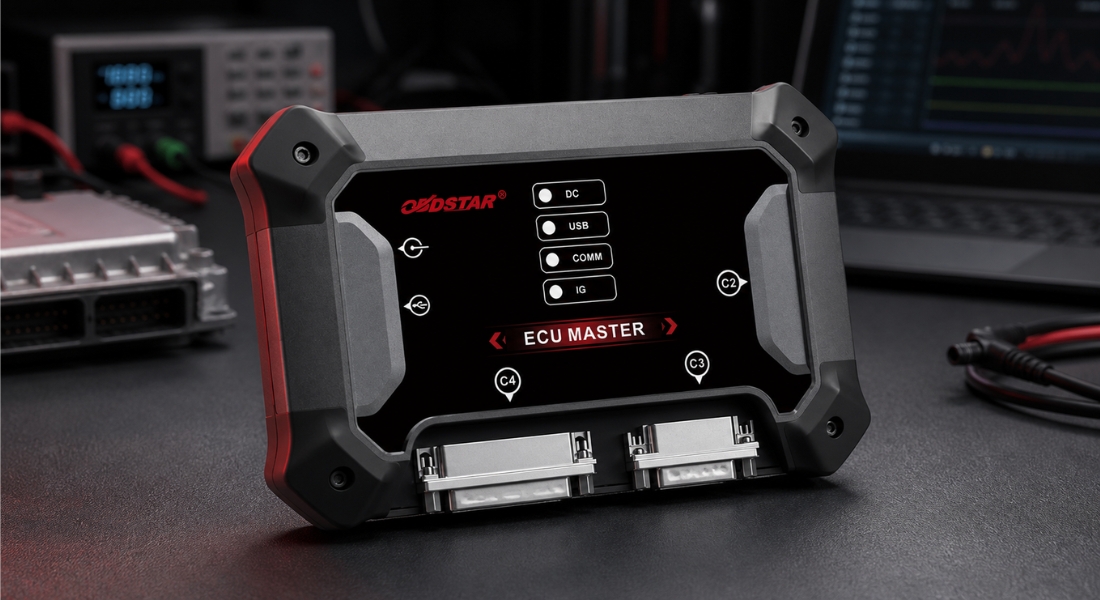

OBDStar ECU Master is a professional programmer designed to work with control units in passenger cars and electric vehicles. Depending on the selected license, it allows for reading, writing, backing up, and cloning ECU data, or resetting supported SRS and airbag modules after an accident. The device supports the main communication methods used in programming automotive units, including OBD, BENCH, BOOT, JTAG, and BDM modes. The software is designed for computers running Windows 10 or later. The ECUMaster software includes warnings about incorrect procedures, which help minimize the risk of errors when connecting and programming the unit. For supported ECUs and airbag modules, optional specialized cables are available that allow for direct connection without manually connecting individual pins. The device connects to the computer via a USB cable. Individual operations are then performed using the user-friendly OBDStar ECU Master program.

This is hardware only—you can add your chosen software license (A, B, C, D, or any combination) higher up on the page, here or in the shopping cart.

Available Licenses

The device requires purchasing a license of your choice. The following options are available:

  • Option A – Passenger Cars: programming and cloning of control units for passenger cars and electric vehicles
  • Option B – Motorcycles: reading, writing, and cloning of motorcycle engine control units
  • Option C – Trucks: programming and cloning of control units for trucks, buses, and work machines
  • Option D – Airbag: restoration of supported SRS and airbag units after an accident
  • Full Option - A+B+C+D

Option A – Passenger Cars

Option A is designed for programming control units in passenger cars and select electric vehicles. It supports work with the ECM (engine control module), TCM (transmission control module), and BCM (body control module), as well as with the BMS (battery management system) and VCU (vehicle control unit) in compatible electric vehicles.

Supported Functions

  • Reading and writing data to ECM, TCM, BCM, and selected BMS/VCU units
  • Cloning units and transferring data between the original and replacement units
  • Reading and writing Flash and EEPROM memories
  • Automatic CheckSum correction
  • Reading and writing VIN
  • Virgin Reset, personalization, and data transfer
  • Conversion and decryption of immobilizer data
  • IMMO OFF / ON
  • Reading and writing ECU maps
  • Unlocking and locking supported ECUs
  • Calibrating the coolant temperature sensor on supported units
  • Calibrating the odometer and ECU operating time on supported systems

Option B – Motorcycles

Option B is designed for working with motorcycle engine control units. Supported applications include select units from Harley-Davidson, Honda, CFMOTO, Kawasaki, and other manufacturers listed in the current coverage list.

Supported Functions

  • Reading and writing data to motorcycle ECUs
  • Reading and writing memory on supported units
  • Cloning selected engine control units
  • Reading and writing VIN
  • Virgin Reset of supported units
  • Data buffer reset
  • Odometer calibration for supported units
  • Operation in BENCH mode depending on the control unit type

Option C – Trucks

Option C is designed for control units in trucks, buses, agricultural machinery, and other heavy equipment. It supports selected ECM, TCM, and BCM units from Mercedes-Benz, Volvo, Scania, MAN, Iveco, Isuzu, Mitsubishi Fuso, Ford, John Deere, Kubota, Yanmar, and other manufacturers.

Supported Functions

  • Reading and writing data to ECM, TCM, and BCM units
  • Cloning supported control units
  • Reading and writing VIN
  • Virgin Reset of supported units
  • Automatic CheckSum correction
  • Reading and writing ECU maps
  • Unlocking and locking supported ECUs
  • IMMO OFF / ON
  • Odometer calibration for supported systems
  • Operation in BENCH, BOOT, JTAG, and BDM modes depending on the unit type

Option D – Airbag

Option D is designed for specialists who repair SRS and airbag units. For supported modules, it allows you to read the necessary data, delete stored crash records, and reset the unit after the restraint system has been activated.

Supported Functions

  • Reading and backing up data from supported SRS and airbag units
  • Deleting stored crash data after an accident
  • Writing corrected data back to the control unit
  • Restoration and repair of supported airbag modules
  • Reading and writing EEPROM, Flash, or DFlash memories depending on the unit type
  • Work procedures and information needed for proper unit connection
  • Warnings regarding incorrect work procedures

The availability of the Crash Reset function depends on the specific manufacturer, airbag unit model, processor used, and current software version. Before beginning repairs, we recommend verifying the module in the current list of supported units.

Supported Connection Modes

  • OBD – communication and programming via the vehicle’s diagnostic port
  • BENCH – working with a removed unit without having to open it
  • BOOT – direct reading and writing to the unit in service mode
  • JTAG / BDM – working with selected processors and memories via a direct connection

Supported Communication Protocols

  • CAN – ISO 11898
  • ISO 15765
  • SAE J1939
  • J1708
  • ISO 9141
  • ISO 14230 – KWP2000
  • SAE J1850
  • other protocols depending on the type of control unit

Technical Specifications

  • Operating System: Windows 10 and newer
  • Operating Temperature: -10 °C to 55 °C
  • Storage Temperature: -20 °C to 70 °C
  • Dimensions: 176 × 115 × 31 mm

Package Contents

  • OBDStar ECU Master (software license of your choice must be purchased separately)
  • power adapter
  • main cable
  • USB cable
  • BENCH cable
  • set of jumper wires
  • 3-in-1 jumper extension cable
  • C4-01 Multifunction Data Reading and Writing Board
  • C4-10 Adapter
  • W004 Cable
  • W005 Cable
  • W006 Cable
  • User Manual
