PAX IM30 Payment Terminal

Product detailed description

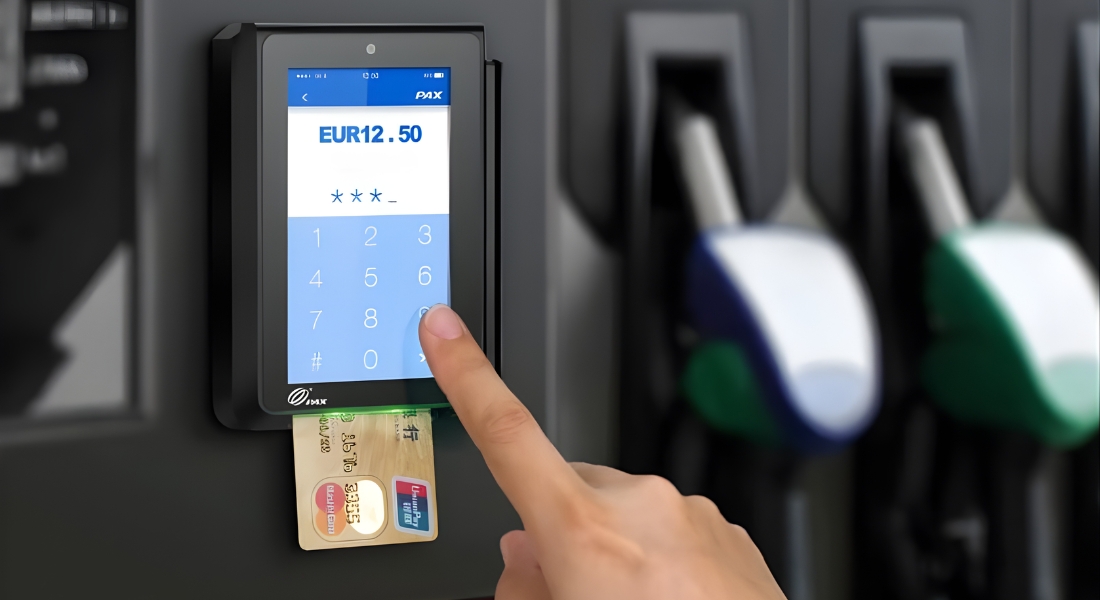

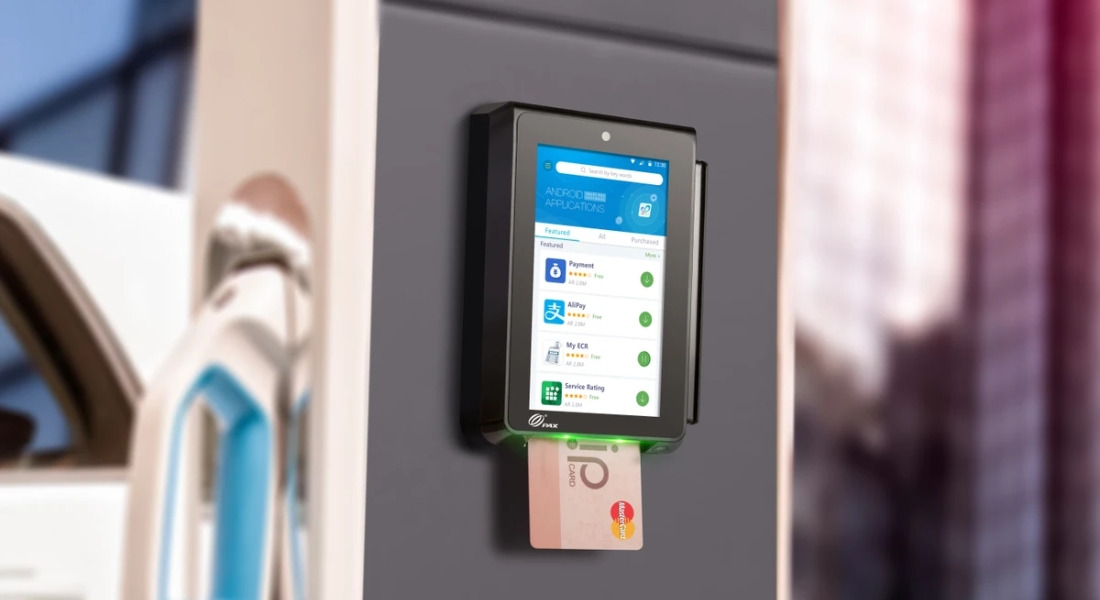

The PAX IM30 is a self-service payment terminal with a wide range of applications. It features a 5″ color touchscreen and supports all types of payment cards – EMV, NFC, chip, and magnetic stripe – as well as QR code scanning.& nbsp;It offers fast and stable connectivity via 4G, Wi-Fi, or LAN.  High durability with IP65 rating and advanced security features make it an ideal solution for 24/7 operation.

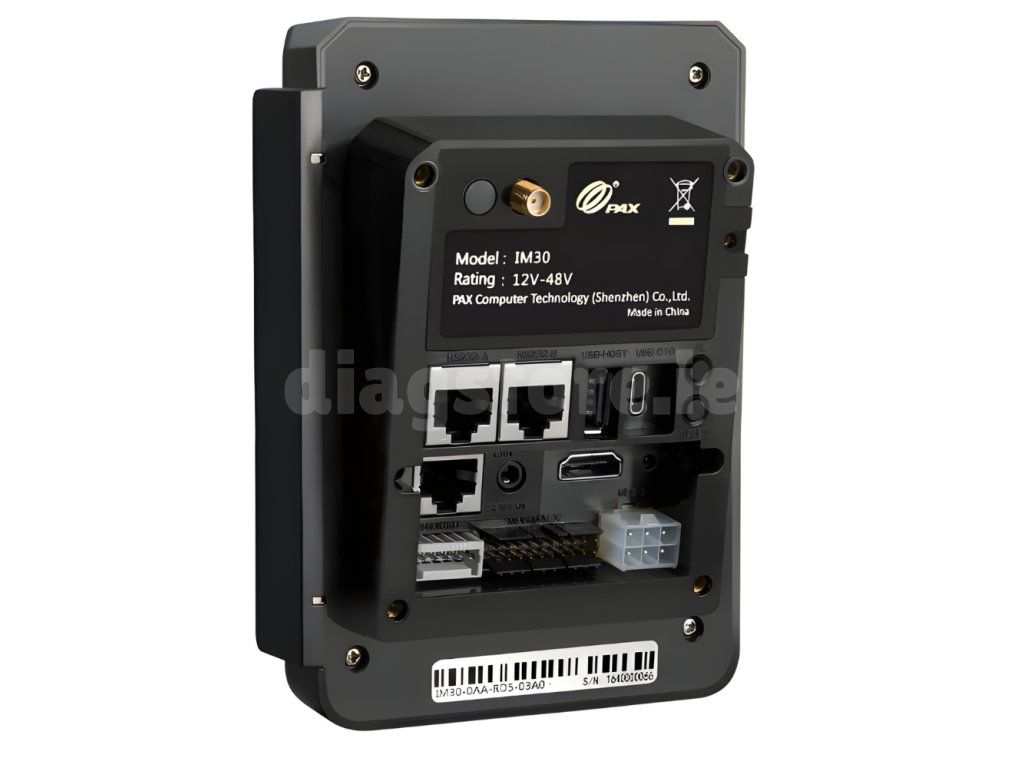

The PAX IM30 device has 2 variants – connection via LAN (Ethernet) or 4G, Wi-Fi, and Bluetooth.

Features

• IP65 rating and IK08 mechanical resistance
• Clear 5″ touchscreen
• Intuitive operation thanks to Android OS
• Support for all common payment methods: magnetic stripe cards, chip cards (IC), contactless payments (NFC)
• Support for EMV chip cards
• Support for QR codes and barcodes
• Fast and stable connection via 4G/LTE, Wi-Fi, Bluetooth, or LAN (Ethernet)
• Remote management capability
• Vandal-resistant design
• 1 reset button

Certifications

The device complies with the most important security and payment standards, including PCI PTS 5.x SRED, EMV L1 & L2, and EMV Contactless L1, and supports major card schemes such as Visa payWave, Mastercard Contactless, American Express, Discover, JCB, and Interac. It is also certified to CE, RoHS, UL, FCC, features IP55 and IK08 protection, and is suitable for demanding environments, including ATEX.

Supported Languages

English, Czech, Slovak, German, French, Spanish, Italian, Portuguese, Dutch, Polish, Hungarian, Romanian, Bulgarian, Croatian, Slovenian, Serbian, Bosnian, Macedonian, Albanian, Greek, Danish, Swedish, Norwegian, Finnish, Estonian, Latvian, Lithuanian, Irish, Maltese, Icelandic, Russian, Ukrainian, Belarusian, Turkish, Arabic, Hebrew, Persian, Urdu, Hindi, Bengali, Tamil, Telugu, Marathi, Gujarati, Kannada, Malayalam, Punjabi, Sinhala, Thai, Vietnamese, Indonesian, Malay, Filipino, Japanese, Korean, Chinese (Simplified), Chinese (Traditional), Mongolian, Tibetan, Nepali, Lao, Khmer, Burmese, Georgian, Armenian, Azerbaijani, Kazakh, Uzbek, Kyrgyz, Tajik, Turkmen, Swahili, Afrikaans, Zulu, Xhosa, Amharic, Somali

Device Specifications

• Protection Rating: IP65
• Operating System: Android
• Display: 5″ with 1280×720 resolution
• Camera: front 2 MP, bottom 2 MP
• Operating temperature: −20 °C to +70 °C
• Storage temperature: -30 °C to 80 °C
• Dimensions: 146 × 105 × 57 mm

Package Content

•  PAX IM30
