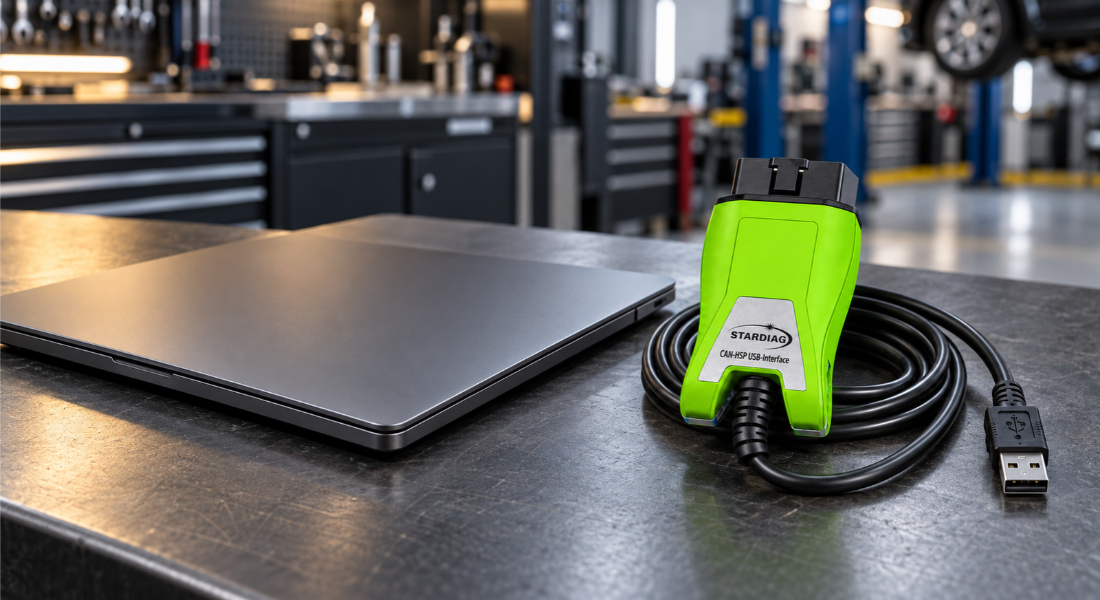

StarDiag CAN HSP USB Interface

Product detailed description

The StarDiag CAN HSP USB is a diagnostic interface designed for communication between a computer and a vehicle’s control units. A fast 32-bit processor and an 8,192-byte buffer ensure smooth data transfer even during longer and more demanding diagnostic tasks. It enables diagnostics and service procedures, and—depending on the software used and the specific vehicle—also allows for the adaptation or programming of control units.

Features

• Reading and clearing diagnostic error codes
• Displaying operating parameters of control units
• Performing service functions, adaptations, and coding within the scope supported by the diagnostic software
• Access to control units for the engine, transmission, ABS, airbags, body, power steering, air conditioning, instrument panel, and other systems, depending on the vehicle
• Fast and stable USB communication with control units
• Powerful 32-bit processor and 8192-byte communication buffer
• Support for vehicles with 12 V and 24 V onboard voltages
• Integrated 18 V programming output
• Upgradable firmware
• Sleep, Wake, and Low Power modes to conserve the vehicle’s battery
• LED indicators for connection, communication, and diagnostic progress
• Integrated short-circuit and overvoltage protection
• Durable 16-pin OBD-II connector and approximately 1-meter-long USB cable

Compatibility and Supported Models

The interface is designed for vehicles equipped with an OBD-II diagnostic port and is compatible with Multiecuscan, AlfaOBD, FORScan, and other diagnostic applications that use ELM327 commands or extended STN commands. Software is not included.

Supported diagnostic protocols:

• ISO 9141-2 (K-Line)
• ISO 14230-4 (KWP2000 – Fast Init and 5-Baud Init)
• ISO 15765-4 CAN (11-bit and 29-bit IDs, 250/500 kb/s)
• SAE J1850 PWM (Ford)
• SAE J1850 VPW (GM)
• GM SW-CAN (Single-Wire CAN)
• Ford MS-CAN (Medium-Speed CAN)
• CAN, HS-CAN, and MS-CAN

Package Content

• StarDiag CAN HSP USB
